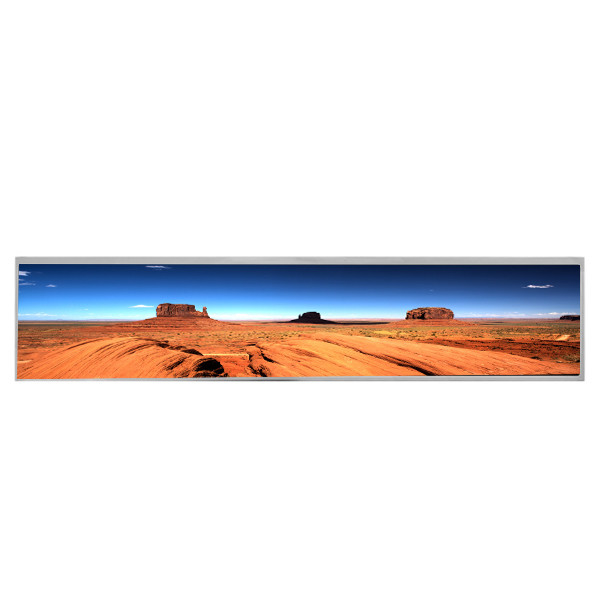

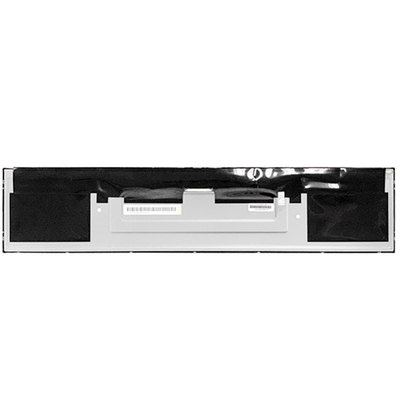

DV240FBM-NB0 24.0 Inch Bar LCD Panel IPS Display RGB 1920x360 For Advertising
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV240FBM-NB0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | DV240FBM-NB0 | Panel Size: | 24.0" (1/3 Cut Of 27.0") |
|---|---|---|---|
| Resolution: | 1920(RGB)×360, 81PPI | Display Area: | 597.888(W)×112.104(H) Mm |
| Outline Size: | 612.7(W)×132.1(H) Mm | Brightness: | 300 Cd/m² (Typ.) |
| Panel Weight: | 1.21Kgs (Typ.) | Application: | Digital Signage / Stretched Bar LCD |
| High Light: | DV240FBM-NB0 bar lcd panel,IPS Display bar LCD panel,24.0 inch bar LCD panel |
||
Product Description
DV240FBM-NB0 Original new 24.0 inch LCD panel Bar LCD IPS Display 1920(RGB)×360 for advertising
Product details :
| BOE LCD SCREEN DV240FBM-NB0 | |
| Manufacturer | BOE |
| Model Name | DV240FBM-NB0 |
| Screen Size | 24.0 inch (1/3 cut of 27.0") |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×360 81PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 597.888 × 112.104 (H×V) |
| Outline(mm) | 612.7 × 132.1 (H×V×D) |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 30K hours , No Driver |
| Mass | 1.21Kgs (Typ.) |
| Used for | Digital Signage / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| DV240FBM-NB0 Original new 24.0 inch LCD panel Bar LCD IPS Display 1920(RGB)×360 for advertising | |
