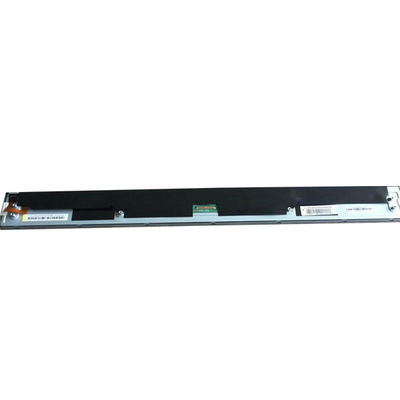

BOE Stretched Bar Type LCD Display 20.9 Inch DV210FBM-N00 IPS TFT Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV210FBM-N00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DV210FBM-N00 | Screen Size: | 20.9 Inch (Native Bar) |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×132 92PPI | Active Area(mm): | 529.416 × 36.3974 (H×V) |
| Outline(mm): | 542.4 × 54.7 (H×V×D) | Brightness: | 300 Cd/m² (Typ.) |
| Mass: | 500g (Typ.) | Application: | Digital Signage / Stretched Bar LCD |
| High Light: | Stretched bar type lcd display,DV210FBM-N00 bar type LCD display,IPS TFT bar type LCD display |
||
Product Description
Original BOE Stretched Bar Type 20.9 inch DV210FBM-N00 1920×132 IPS TFT Screen For Digital Signage
Product details :
| BOE LCD SCREEN DV210FBM-N00 | |
| Panel Brand | BOE |
| Panel Model | DV210FBM-N00 |
| Panel Size | 20.9" (Native bar) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×132, 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 529.416(W)×36.3974(H) mm |
| Outline Size | 542.4(W)×54.7(H) mm |
| Surface | Antiglare (Haze 25%) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | HADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8(Typ.)(G to G) |
| Display Colors | 16.7M 73% NTSC |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 500g (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 40 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
1 : Price can be negotiable based on quantity; delivery terms;
2 : Samples: We can offer samples ,but we kindly ask you pay for samples and the freight.
3: Quality guarantee: We will inspect the appearance and test functions of all of our items before shipping, so it is very important for our customers to let professional operators test and install them.
4: Package: All the items will be packed very well to avoid damage.
5: After-service: We provide best after-service, any problem will be solved successfully and smoothly, 100% satisfaction guaranteed.
Shipping and Package :
Packing:
We make him independent separated by foam box do support. And put into cartons. Between carton and foam box filled sponge. It is in the shipping process to ensure security.
Delivery:
If your product is a simple, routine. We only need three to five business days, it can produce complete. When confronted with special custom products, we may need 10 days to complete it also.
We will send out the goods as soon as possible . Usually lead time should be within three days if your purchase order is not special .
A DHL/UPS/Fedex/4xp :2-7 days
B Singapore EMS /China EMS:15-45 days
C Singapore post air post :20-60 days
If your country need through other transportation to send the goods, Please contact us to help you solve the transportation problem.
Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
Our Services & Strength:
Factory Direct Supplied, Rich experience sourcing Advantage.
Engineer have More than 10years experience in Panel Filed Support Customer Professional Technology Service.
Competitive Price and Short Lead-time
Small MOQ Support & Fast Reply
FAQ:
Q: How long will I receive my goods DV210FBM-N00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of DV210FBM-N00?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of DV210FBM-N00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of DV210FBM-N00 ?
A: We accept T/T , Paypal , western union .
