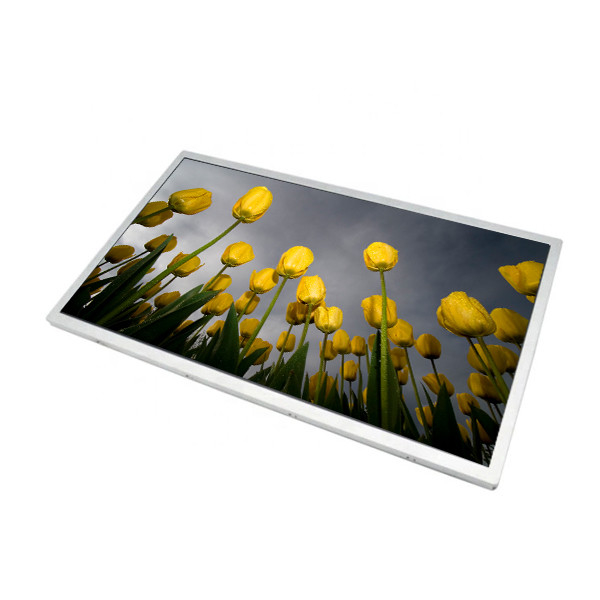

18.5 Inch LCD Screen Display DV185WHM-NM0 1366×768 For Digital Signage
Product Details:
Place of Origin: | China |
Brand Name: | BOE |
Model Number: | DV185WHM-NM0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | DV185WHM-NM0 | Screen Size: | 18.5 Inch |
---|---|---|---|
Pixel Number: | 1366(RGB)×768 (WXGA) 84PPI | Active Area(mm): | 409.8 × 230.4 (H×V) |
Outline(mm): | 430.4 × 254.6 × 11.4 (H×V×D) | Bezel Area(mm): | 413.4 × 234.0 (H×V) |
Mass: | 1.27Kgs (Typ.) | Used For: | Digital Signage |
High Light: | Digital Signage LCD Screen display,DV185WHM-NM0 LCD Screen display,1366×768 LCD Screen display |
Product Description
18.5 inch LCD Screen display DV185WHM-NM0 1366×768 For Digital Signage
Product details :
BOE LCD SCREEN DV185WHM-NM0 | |
Panel Brand | BOE |
Panel Model | DV185WHM-NM0 |
Panel Size | 18.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA, 84PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 409.8(W)×230.4(H) mm |
Bezel Opening | 413.4(W)×234.0(H) mm |
Outline Size | 430.4(W)×254.6(H) ×11.4(D) mm |
Surface | Antiglare (Haze 25%), Hard coating (3H) |
Brightness | 250 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Display Mode | ADS, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 14 (Typ.)(G to G) |
Display Colors | 16.7M 99% sRGB |
Lamp Type | 6S4P WLED , 30K hours , Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 1.27Kgs (Typ.) |
Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
Input Voltage | 5.0V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
18.5 inch LCD Screen display DV185WHM-NM0 1366×768 For Digital Signage |
Contact us:
lf you have any problems or queries during the shopping, please feel free to ask the online serving staff.You can also leave a message to us if nobody here due to the time difference.
Payment:
Currently, We accept the payment by using Visa,MasterCard,Maestro debit ard, QIWI,WebMoney, Boleto,Western Union, and Bank transfer.More payment options will be available .
Shipping and Package :
Shipment Information:
1.Your produets will be posted out within five working days after the payment is received.(We will inform you via email if any delay occurred due to holiday events.)
2.Please complete your full delivery address with contact phone number, especially Russian buyers, please confirm your full name.
3.Please notice we will not responsible for customs duties, there may have customs duties due to some country's customs policy.Once this happened, please do the customs clearance yourself.
4.For any other problems, do not hesitate to contact us, we will try our best to serve you.
Refund&Replacement:
1.If there are any problems with our products, you can request returning or refunding within 7days after receiving itrems, but please contact with our customer service firstly before returning or opening a dispute.we will try our best to help you, Thanks very much!
2.All the items must be returned in their original condition, or we will refuse to make a refund.
3.The buyer is responsible for all charges occurred in returning process.
FAQ:
Q: How can I trace my order of DV185WHM-NM0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods DV185WHM-NM0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of DV185WHM-NM0 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of DV185WHM-NM0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
