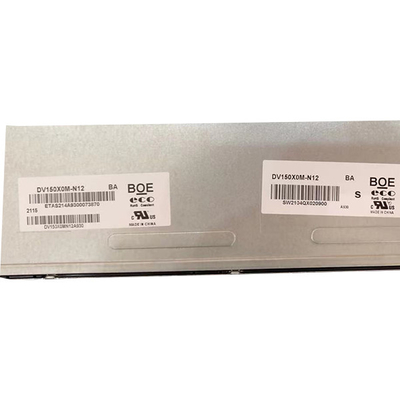

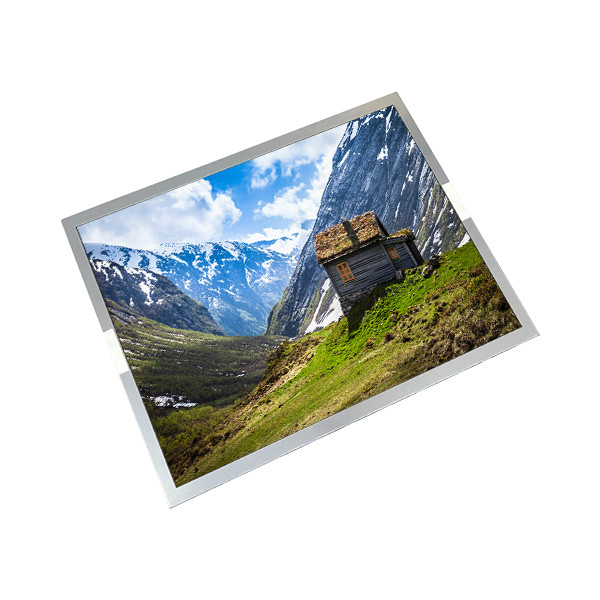

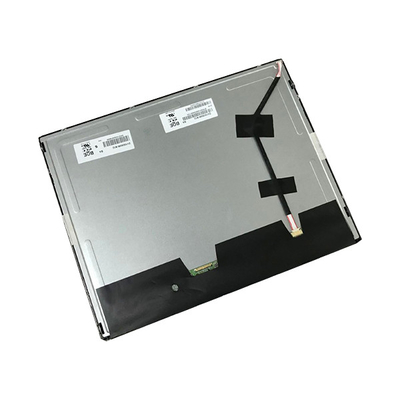

EDP Industrial LCD Monitor 15.0 Inch RGB 1024×768 BOE DV150X0M-N12 Brightness 350cd/M2
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV150X0M-N12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | DV150X0M-N12 | Diagonal Size: | 15.0 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768 [XGA] 85PPI | Active Area: | 304.128(H)×228.096(V) Mm |
| Outline Dim.: | 326.5(H)×253.5(V) ×9.7(D) Mm | Bezel Area: | 306.5(H)×230.1(V) Mm |
| Weight: | 930g | Used For: | Industrial / Digital Signage |
| High Light: | eDP Industrial LCD monitor,350cd/M2 Industrial LCD monitor,DV150X0M-N12 Industrial LCD monitor |
||
Product Description
15.0 inch 1024(RGB)×768 BOE DV150X0M-N12 Brightness 350 eDP LCD monitors for Industrial Machine
Product details :
| BOE LCD SCREEN DV150X0M-N12 | |
| manufacturer | BOE |
| Model Name | DV150X0M-N12 |
| screen size | 15.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768 [XGA] 85PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 304.128(H)×228.096(V) mm |
| physical dimension | 326.5(H)×253.5(V) ×9.7(D) mm |
| Visual size | 306.5(H)×230.1(V) mm |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Best angle | Symmetry |
| Optical mode | ADS, Normally Black, Transmissive |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Responding time | 30 (Typ.)(Tr+Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | WLED [12S4P] , 50K hours , With LED Driver |
| Panel weight | 930g |
| Apply to | Industrial / Digital Signage |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | eDP (1 Lane) , 30 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| 15.0 inch 1024(RGB)×768 BOE DV150X0M-N12 Brightness 350 eDP LCD monitors for Industrial Machine | |
