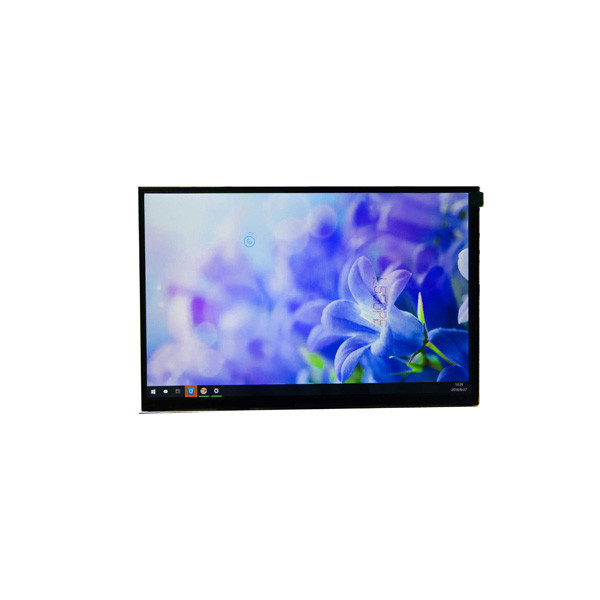

10.4 Inch BP101WX1-210 TFT LCD Panel RGB 1280X800 WXGA OEM Touch Digitizer Spare Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BP101WX1-210 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BP101WX1-210 | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×800 (WXGA) 149PPI | Active Area(mm): | 216.96 × 135.6 (H×V) |
| Outline(mm): | 228.3 × 149.05 × 4.4 (H×V×D) | Bezel Area(mm): | 220.46 × 139.25 (H×V) |
| Mass: | 155g (Max.) | Used For: | Pad & Tablet |
| High Light: | BP101WX1-210 TFT LCD Panel,WXGA TFT LCD Panel,Touch Digitizer TFT LCD Panel |
||
Product Description
10.4 inch BP101WX1-210 1280×800 TFT LCD Panel Screen Display Oem Touch Digitizer Spare Parts Assembly Replacement
Product details :
| BOE LCD SCREEN BP101WX1-210 | |
| Panel Brand | BOE |
| Panel Model | BP101WX1-210 |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 220.46(W)×139.25(H) mm |
| Outline Size | 228.3(W)×149.05(H) ×4.4(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 330 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25(Typ.)(Tr+Td) |
| Display Colors | 16.7M 50% NTSC |
| Lamp Type | 6 strings WLED , 15K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 155g (Max.) |
| Signal Interface | MIPI (4 data lanes) , 39 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
