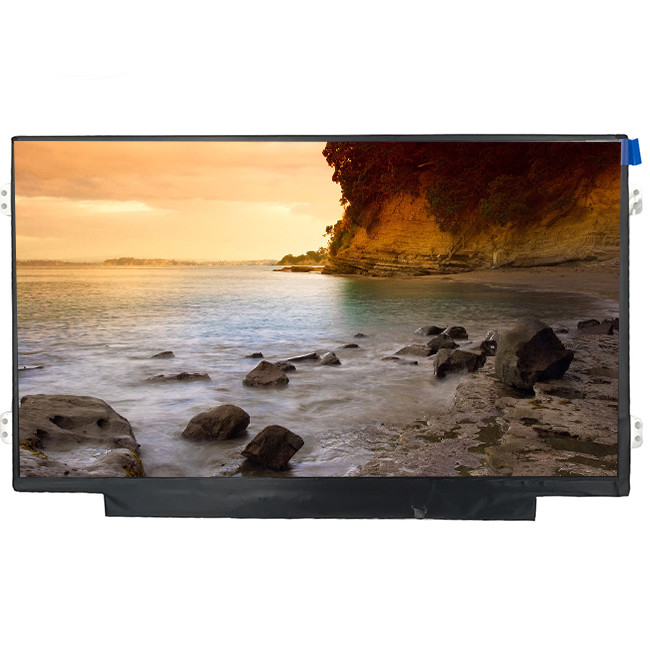

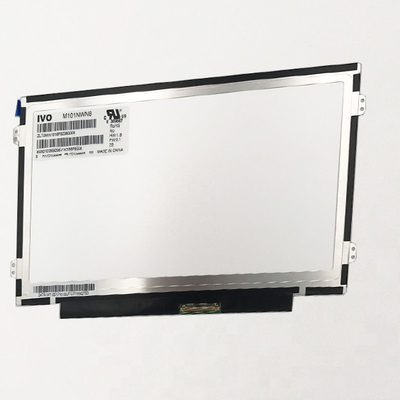

M101NWN8 R0 IVO 10.1 Inch TFT IPS LCD Display 1366X768 HDMI - LVDS Controller Board
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M101NWN8 R0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | M101NWN8 R0 | Panel Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 (WXGA) 155PPI | Active Area: | 222.52 × 125.11 (H×V) |
| Outline Dim.: | 243 × 146.5 × 3.6 (H×V×D) | Bezel Area: | 225.72 × 128.28 (H×V) |
| Voltage Supply: | 3.3V (Typ.) | Used For: | Laptop |
| High Light: | TFT IPS Industrial LCD Panel Display,M101NWN8 R0 TFT IPS LCD display,10.1 Inch TFT IPS LCD display |
||
Product Description
M101NWN8 R0 IVO 10.1 inch 1366*768 tft ips lcd panel display with H-DMI to lvds controller board
Product details :
| IVO LCD SCREEN M101NWN8 R0 | |
| Manufacturer | IVO |
| Model Name | M101NWN8 R0 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 155PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 222.52 × 125.11 (H×V) |
| Outline(mm) | 243 × 146.5 × 3.6 (H×V×D) |
| Bezel Area(mm) | 225.72 × 128.28 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Min.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Response | 3/5 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M101NWN8 R0 IVO 10.1 inch 1366*768 tft ips lcd panel display with H-DMI to lvds controller board | |
KIND REMINDER:
* Each LCD will be tested one by one with our device before shipping to make sure the lcd will works perfect on your device,if you don't know how to install it,we suggest you to find a professional technician to do for you.Installation guide not provide, please be sure you know how to install it before bid.
ABOUT US:
* if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible
* Each item has been checked and in good condition before shipping.
* It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
* if the item has some problem, please contact us at first time. I will help you solve problems and try our best to make you be satisified.
* happy do business with you, i think communication will solve all the problem .so, please do not be hesitate to contact us.
Payment :
1. We accept Escrow, Alipay, Paypal, T/T(Bank Transfer), Credit Card, Western Union, Moneygram, etc....
2. If you have any problems of payment, please contact us.
Shipping details:
1. Worldwide shipping.
2. Order will be shipped within 1-3 days after receiving your money
3. Major express partners: DHL,UPS,EMS,Fedex.
4. We are not responsible for any import fees,remote area charges,taxes or other Customs fees.
Guarantee :
1. All items will be strictly tested before shipping.
2. Warranty is 90 days.
Refund&Return:
1. If the item is defective, pls notify us within 3 days after receiving.
2. items should be returned with original package if possible.
Reminder:
Russian Friend Pay Attention Please !!!
Please fill in receiver's full name in the order due to new policy of Russian customs,otherwise you probably won't receive package finally .
We are not responsible for nondelivery caused by that client don't provide enough information when making order.
FAQ:
Q: How to make payment for M101NWN8 R0 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of M101NWN8 R0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of IVO M101NWN8 R0 ?
A: 90days warranty .
Q: How can I trace my order of IVO M101NWN8 R0 ?
A: we will give you tracking number then you can trace your order from website.
Shipping and Package :
