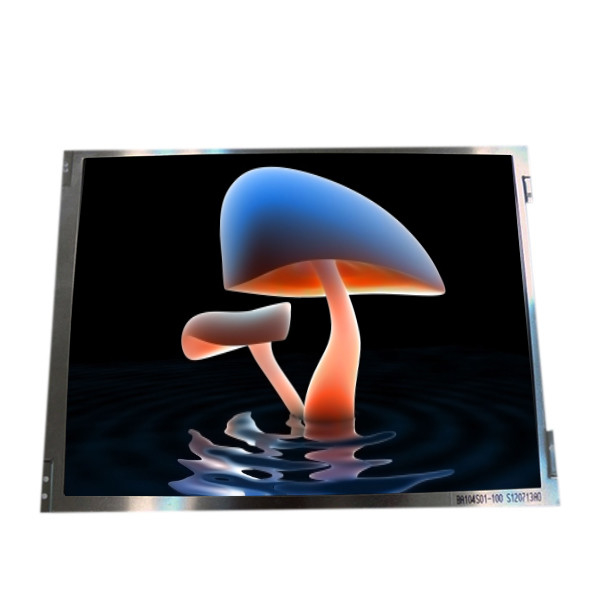

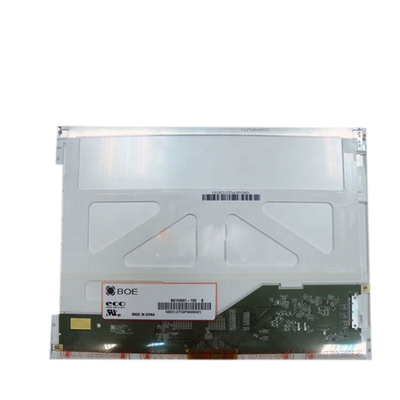

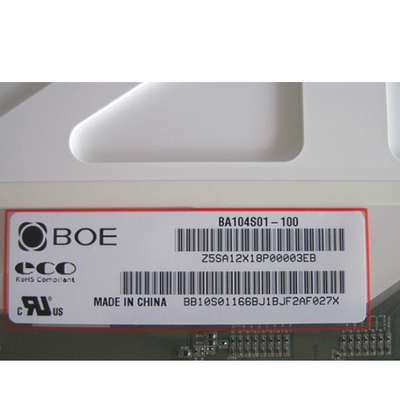

Industry TFT LCD Module 10.4 Inch BA104S01-100 800×600 BOE Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BA104S01-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | BA104S01-100 | Diagonal Size: | 10.4 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 96PPI | Active Area: | 211.2(H)×158.4(V) Mm |
| Outline Dim.: | 236(H)×176.9(V) ×5.9(D) Mm | Bezel Area: | 215.0(H)×162.0(V) Mm |
| Weight: | 288g (Typ.) | Application: | Industrial / Medical Imaging |
| High Light: | BA104S01-100 tft LCD module,10.4 Inch TFT LCD module,Clear Surface tft LCD display |
||
Product Description
10.4 inch BA104S01-100 800×600 BOE display for Industry tft LCD module
Product details :
| BOE LCD SCREEN BA104S01-100 | |
| Panel Brand | BOE |
| Panel Model | BA104S01-100 |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA, 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.0(W)×162.0(H) mm |
| Outline Size | 236(W)×176.9(H) ×5.9(D) mm |
| Surface | Clear |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 50% NTSC |
| Lamp Type | 6S6P WLED , 50K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 288g (Typ.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
