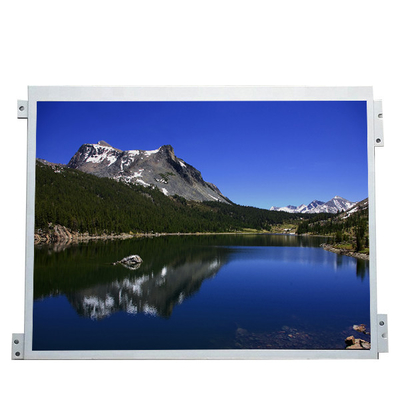

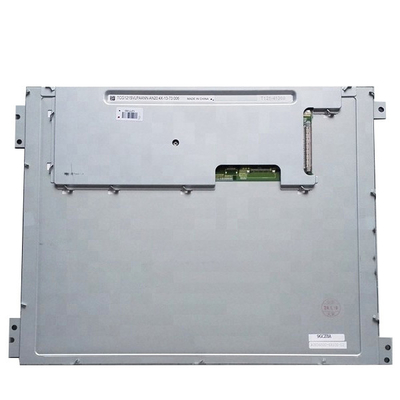

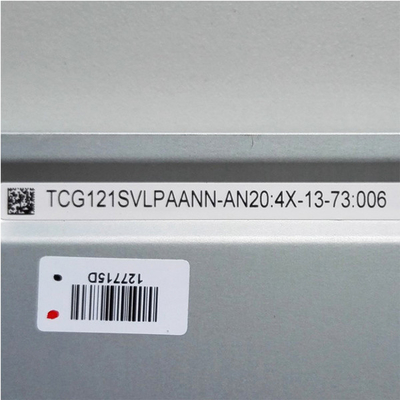

TCG121SVLPAANN-AN20 Industrial LCD Panel Display 12.1 Inch 800×600 Antiglare Surface
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG121SVLPAANN-AN20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TCG121SVLPAANN-AN20 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 [SVGA] 82PPI | Display Area: | 246(H)×184.5(V) Mm |
| Bezel Area: | 249.0(H)×187.5(V) Mm | Outline Dim.: | 278.3(H)×207.5(V) ×10(D) Mm |
| Panel Weight: | 645g | Application: | Industrial |
| High Light: | Antiglare Surface Industrial LCD Panel Display,500 cd/m2 Industrial LCD Panel Display,TCG121SVLPAANN-AN20 |
||
Product Description
TCG121SVLPAANN-AN20 Original 12.1 inch 800×600 LCD Display
Product details :
| Kyocera LCD SCREEN TCG121SVLPAANN-AN20 | |
| Panel Brand | Kyocera |
| Panel Model | TCG121SVLPAANN-AN20 |
| Panel Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA, 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Size | 278.3(W)×207.5(H) ×10(D) mm |
| Surface | Antiglare |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 4/22 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 54% NTSC |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 645g |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
