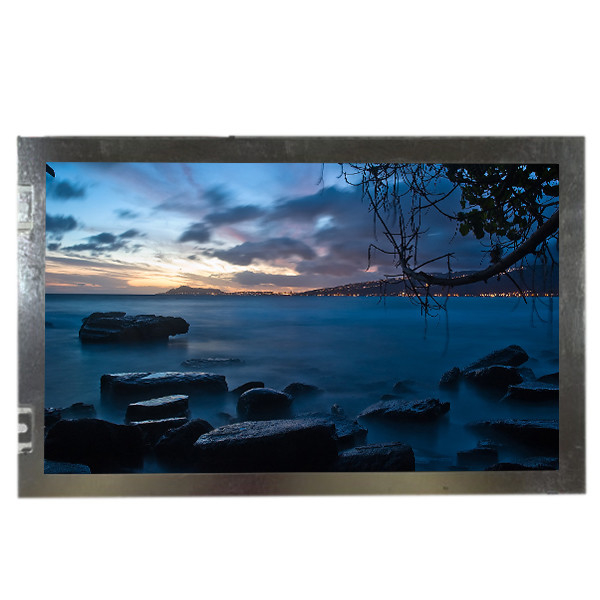

400 Cd/M2 Industrial LCD Panel Display 8.5 Inch RGB 800X480 TCG085WVLCB-G00
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG085WVLCB-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TCG085WVLCB-G00 | Diagonal Size: | 8.5 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 [WVGA] 109PPI | Active Area: | 184.8(H)×110.88(V) Mm |
| Outline Dim.: | 210(H)×134(V) ×9(D) Mm | Bezel Area: | 187.4(H)×113.5(V) Mm |
| Weight: | 305g (Typ.) | Application: | Industrial |
| High Light: | 400 Cd/M2 Industrial LCD Panel Display,Parallel RGB Industrial LCD Panel Display,3.3v Industrial LCD Panel Display |
||
Product Description
LCD Display panel 8.5 inch 800(RGB)×480 TCG085WVLCB-G00
Product details :
| Kyocera LCD SCREEN TCG085WVLCB-G00 | |
| Panel Brand | Kyocera |
| Panel Model | TCG085WVLCB-G00 |
| Panel Size | 8.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA, 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 184.8(W)×110.88(H) mm |
| Bezel Opening | 187.4(W)×113.5(H) mm |
| Outline Size | 210(W)×134(H) ×9(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 60/60/60/45 (Typ.)(CR≥5) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 15/35 (Typ.)(Tr/Td) |
| Display Colors | 262K 49% NTSC |
| Lamp Type | 6S2P WLED , 50K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 305g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
Customer Service Policy:
If you need more quantity, please contact us. If you mind the price, please contact us if some parts are not found in my store, we still have many parts unreleased.
We will send the latest version of the product with upgraded features. It may have different shapes or colors. If you cannot agree, please do not buy.
If you have any questions, please feel free to contact us, we will give you a satisfactory answer. Hope you can understand us, thank you in advance.
Payement:
(1)You need to confirm your account balance to pay it.
(2)Payment must be made within 3 days.
(3)If you can't immediately after checkout,please wait for a few minutes, then try the payment must be completed within 3days.
Shipping and Package :
About shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
Return :
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
if you meet any questions,pls contact me first,i will try to solve for you. Negative feedback is not acceptable before contacting me.
FAQ:
Q: How long will I receive my goods TCG085WVLCB-G00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of TCG085WVLCB-G00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TCG085WVLCB-G00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of TCG085WVLCB-G00 ?
A: we will give you tracking number then you can trace your order from website.
