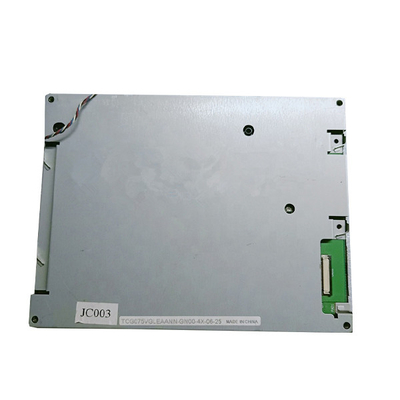

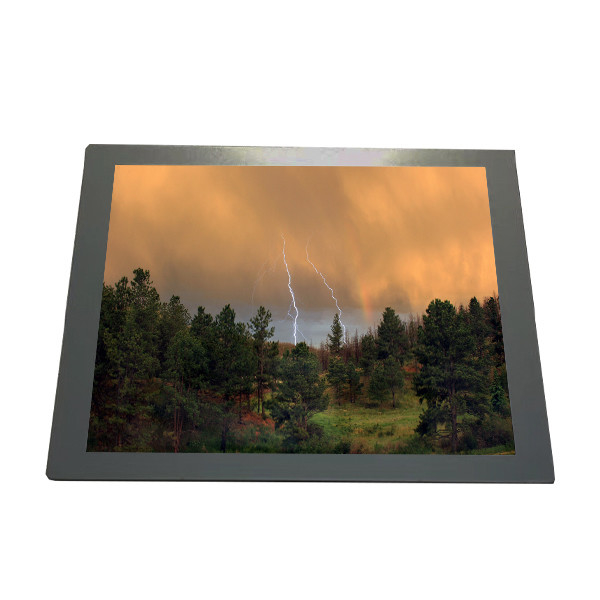

Kyocera 7.5 Inch Industrial LCD Panel Display RGB 640x480 TFT LCD Display TCG075VGLEAANN-GN00
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG075VGLEAANN-GN00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Brand: | TCG075VGLEAANN-GN00 | Panel Size: | 7.5 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 [VGA] 107PPI | Active Area: | 151.68(H)×113.76(V) Mm |
| Outline Dim.: | 184(H)×139.8(V) ×13.2(D) Mm | Bezel Area: | 156.3(H)×118.4(V) Mm |
| Weight: | 340g (Typ.) | Application: | Industrial |
| High Light: | TFT Industrial LCD Panel Display,Kyocera Industrial LCD Panel Display,3.3V tft lcd display |
||
Product Description
Kyocera 7.5 inch 640(RGB)×480 tft lcd display TCG075VGLEAANN-GN00
Product details :
| Kyocera LCD SCREEN TCG075VGLEAANN-GN00 | |
| Panel Brand | Kyocera |
| Panel Model | TCG075VGLEAANN-GN00 |
| Panel Size | 7.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA, 107PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 151.68(W)×113.76(H) mm |
| Bezel Opening | 156.3(W)×118.4(H) mm |
| Outline Size | 184(W)×139.8(H) ×13.2(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Display Colors | 262K 49% NTSC |
| Lamp Type | 2 strings WLED , 50K hours , Without Driver |
| Touch Screen | Without |
| Panel Weight | 340g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
