Bar stretched lcd 1920*720 brightness with HD-MI driver board USB capacitive touch for dashboard HSD123KPW1-A30
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD123KPW1-A30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HSD123KPW1-A30 | Screen Size: | 12.3 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×720 167PPI | Active Area(mm): | 292.032 × 109.512 (H×V) |
| Outline(mm): | 308.1 × 130 × 15.6 (H×V×D) | Bezel Area(mm): | 294.8 × 112.1 (H×V) |
| Mass: | 520g (Typ.) | Used For: | Automotive Display |
Product Description

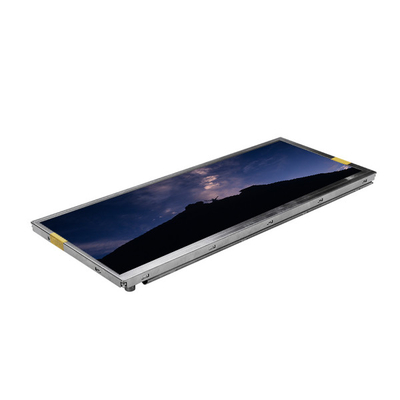

12.3 inch HSD123KPW1-A30 Bar stretched lcd 1920*720 brightness with HD-MI driver board
Product details :
| HannStar LCD SCREEN HSD123KPW1-A30 | |
| Manufacturer | HannStar |
| Model Name | HSD123KPW1-A30 |
| Screen Size | 12.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×720 167PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 292.032 × 109.512 (H×V) |
| Outline(mm) | 308.1 × 130 × 15.6 (H×V×D) |
| Bezel Area(mm) | 294.8 × 112.1 (H×V) |
| Treatment | Antiglare |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10 |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Good View at | Symmetry |
| Response | 17/18 (Typ.)(Tr/Td) ms |
| Color Depth | 16.7M 71% NTSC |
| Backlight | 11S4P WLED , 30K hours , No Driver |
| Mass | 520g (Typ.) |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Application | Automotive Display |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Bar stretched lcd 1920*720 brightness with HD-MI driver board USB capacitive touch for dashboard HSD123KPW1-A30 | |
