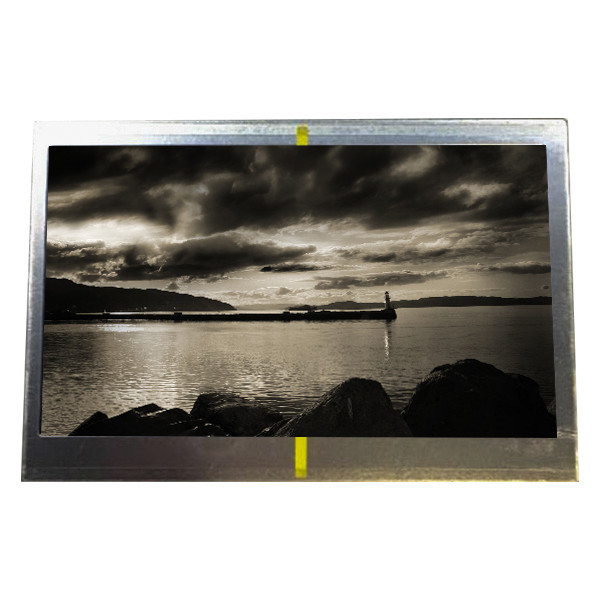

5.7 Inch 320*240 TFT LCD Display Screen TCG057QVLBA-G00
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG057QVLBA-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Brand: | TCG057QVLBA-G00 | Panel Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA, 70PPI | Display Area: | 115.2(W)×86.4(H) Mm |
| Outline Dim.: | 127.2(W)×100.4(H) ×6(D) Mm | Bezel Area: | 117.2(W)×88.4(H) Mm |
| Panel Weight: | 110g (Typ.) | Application: | Industrial |
| Highlight: | 4.3 inch TFT LCD Display,RGB interface Industrial LCD Panel Display,110g TFT LCD Display |
||
Product Description
5.7 Inch 320*240 TFT LCD Display Screen TCG057QVLBA-G00
TCG057QVLBA-G00 Product details :
| Kyocera LCD SCREEN TCG057QVLBA-G00 | |
| Panel Brand | Kyocera |
| Panel Model | TCG057QVLBA-G00 |
| Panel Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA, 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 117.2(W)×88.4(H) mm |
| Outline Size | 127.2(W)×100.4(H) ×6(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Display Colors | 262K 60% NTSC |
| Lamp Type | 3 strings WLED , 40K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 110g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
TCG057QVLBA-G00 Description:
We are factory professional in touch screen digitizer.We offer hundreds kinds of screen panel digitizer and LCD screen.The more you need,the much better price,please contact whth US if large quantity.
We are not professional photographer, so the pictures are not very delicate, but all the products are brand-new and original.Thanks
TCG057QVLBA-G00 Shipping and Package :
TCG057QVLBA-G00 About shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
TCG057QVLBA-G00 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
TCG057QVLBA-G00 About US:
We also can supply LCD and touch screens for 2.5 inch,2.8 inch,3.0 inch,3.5 inch,3.8 inch,4.0 inch,4.3 inch,4.8 inch,5.0 inch,6.5 inch, 7.0 inch LCD, 8.0 inch LCD ,9.0 inch LCD,10.1 inch LCD, 10.4 inch applied on PDA,GPS,mobile phone,car dvd player,car dvd radio,digital camera and industrial products.
Bulk order is acceptable,low prices will be offered to you for bulk order.
Any questions pls contact me! Thanks.
TCG057QVLBA-G00 FAQ:
Q: How long will I receive my goods TCG057QVLBA-G00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of TCG057QVLBA-G00 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can I pay my order of TCG057QVLBA-G00 via credit card ?
A: Yes!you can use your credit card through your Paypal account
