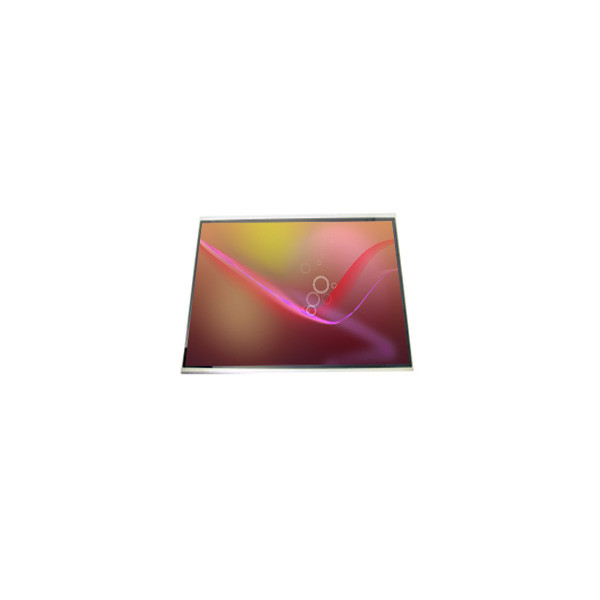

5.0 Inch 480*854 TFT LCD Display Screen HSD050F8W6-D00
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050F8W6-D00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HSD050F8W6-D00 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Pixel Format: | 480(RGB)×854, FWVGA 196PPI | Active Area: | 62.064(W)×110.422(H) Mm |
| Outline Dim.: | 65.1(W)×117.9(H)×0.4(D) Mm | Treatment: | Without Polarizer |
| Luminance: | 0 Cd/m² | Application: | Mobile Phone |
| Operating Mode: | IPS Pro, Normally Black, Transmissive | Plate Thickness: | 0.20+0.20 Mm |
| Highlight: | No touch TFT LCD Display Screen,RGB interface TFT LCD Display Screen,480×272 TFT LCD Display Screen |
||
Product Description
5.0 Inch 480*854 TFT LCD Display Screen HSD050F8W6-D00
Product details :
| Brand | HannStar |
| Model P/N | HSD050F8W6-D00 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 480(RGB)×854, FWVGA 196PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 62.064(W)×110.422(H) mm |
| Bezel Opening | - |
| Outline Dim. | 65.1(W)×117.9(H)×0.4(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 16/19 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Plate Thickness | 0.20+0.20 mm |
| Transmittance | 15.0% (Typ.)(without Polarizer) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Suggest HX8379A, ILI9806, ILI9806C, ILI9806E, ILI9806H, NT35510S, OTM8018B, OTM8009A, OTM8012A, RM68171 |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
