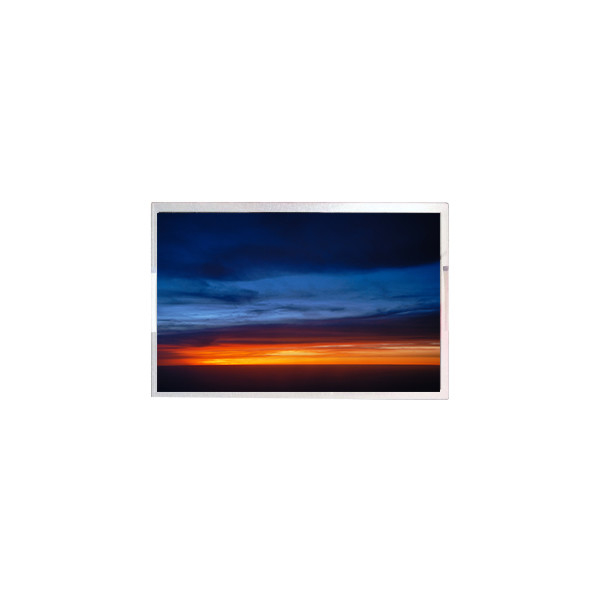

15.6 Inch TFT LCD Panel B156XTK02.0 HW0A 1366*768 laptop lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156XTK02.0 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156XTK02.0 HW0A | Screen Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 100PPI | Active Area: | 344.232(W)×193.536(H) Mm |
| Treatment: | Glare (Haze 0%) | Outline Size: | 350.66(H)×216.15(V) ×3.2(D) Mm |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Application: | Laptop |
| Response Time: | 8 (Typ.)(Tr+Td) | ||
| Highlight: | QVGA Industrial LCD Panel Display,3.5 inch TFT LCD Panel,115PPI TFT LCD Panel |
||
Product Description
15.6 Inch TFT LCD Panel B156XTK02.0 HW0A 1366*768 laptop lcd screen
Product details :
| Brand | AUO |
| Model P/N | B156XTK02.0 HW0A |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline Dim. | 350.66(H)×216.15(V) ×3.2(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 44% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, USB |
| Interface Type | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Notice:
1. Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty touch screen.
2. Please kindly leave us your exact full name (especially buyer from RU ) & Telephone No. , when you filling your informations as buyer, so that the courier can delivery the your items timely & easily.
3.When you got the package ,please make a video that when you open the package. (If there is any damage in transit, you can send this video as evidence to the dispute.)
4.For multi-item orders, please DO NOT submit payment until you have won all items you wish to combine.
5.Note:When you got the package ,please make a video that when you open the package.
Shipping and Package :
Shipping information:
1. We can ship goods all over the world, and we have been shipped to many places
For example: Brazil, Russia, France, Iran and so on.
2. The freight is low. We can ship it to you by DHL, Fedex, UPS, EMS and HK Post.
The delivery time (working day) is as follows: Please provide your P.O.Box or postal code address. Countries around.
Return policy:
· We thank you for your business and offer an immediate 7 day return policy. (7 days after receipt).
· Returned items must remain in their original state.
· We can give you a refund without shipping.
Note:
1. Please note that your customs department may impose duties or sales tax on the items you order when it enters your country. However, in our experience, this rarely happens with a small batch order like ours. We are not responsible for any taxes or duties paid by your government on purchases.
2. If you receive a defective or incorrect item in your package, please notify us and simply return it for a replacement.
FAQ:
Q: Can you give me a discount if I need a large quantity of B156XTK02.0 HW0A ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of B156XTK02.0 HW0A ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of B156XTK02.0 HW0A ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of B156XTK02.0 HW0A ?
A: Of course!sample order is welcome !
