KCS057QV1AJ-G23 A+ Grade Kyocera LCD Display 5.7 Inch 320×240 QVGA 70PPI
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCS057QV1AJ-G23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | KCS057QV1AJ-G23 | Screen Size: | 5.7 Inch |
|---|---|---|---|
| Pixel Number: | 320(RGB)×240 (QVGA) 70PPI | Active Area(mm): | 115.2 × 86.4 (H×V) |
| Outline(mm): | 154.6 × 114.8 × 9 (H×V×D) | Bezel Area(mm): | 120.0 × 91.4 (H×V) |
| Mass: | 200g (Typ.) | Used For: | Industrial |
| High Light: | 5.7 inch kyocera LCD Display,QVGA kyocera LCD Display,70PPI kyocera LCD Display |
||
Product Description
KCS057QV1AJ-G23 Original A+ Grade 5.7 inch 320×240 LCD Display for KYOCERA
Product details :
| Kyocera LCD SCREEN KCS057QV1AJ-G23 | |
| Panel Brand | Kyocera |
| Panel Model | KCS057QV1AJ-G23 |
| Panel Size | 5.7" |
| Panel Type | CSTN-LCD , LCM |
| Resolution | 320(RGB)×240, QVGA, 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 120.0(W)×91.4(H) mm |
| Outline Size | 154.6(W)×114.8(H) ×9(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 40:1 (Typ.) (TM) |
| Viewing Angle | 50/50/30/30 (Typ.)(CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 220/110 (Typ.)(Tr/Td) |
| Display Colors | Color 35% NTSC |
| Lamp Type | 1 pcs CCFL , 40K hours , Optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 200g (Typ.) |

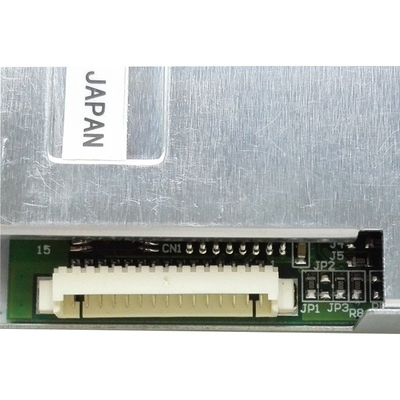

| Signal Interface | Parallel Data (8-bit) , 15 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| KCS057QV1AJ-G23 Original A+ Grade 5.7 inch 320×240 LCD Display for KYOCERA | |
