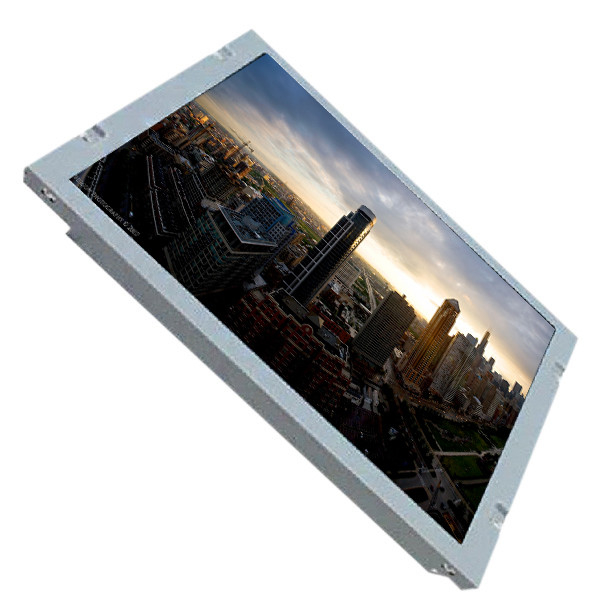

15.0 Inch NLB150XG02L-01 Industrial LCD Panel Display RGB 1024x768 TFT LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NLB150XG02L-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NLB150XG02L-01 | Screen Size: | 15.0 Inch |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768 (XGA) 85PPI | Active Area(mm): | 304.128 × 228.096 (H×V) |
| Outline(mm): | 326.5 × 253.5 × 12.1 (H×V×D) | Bezel Area(mm): | 307.4 × 231.3 (H×V) |
| Mass: | 930/980g (Typ./Max.) | Used For: | Industrial |
| High Light: | XGA Industrial LCD Panel Display,NLB150XG02L-01 Industrial LCD Panel Display,RGB TFT LCD Panel |
||
Product Description
Lcd Monitors 15.0 inch NLB150XG02L-01 1024(RGB)×768 TFT LCD Panel Screen Display Assembly Replacement
Product details :
| NEC LCD Screen NLB150XG02L-01 | |
| manufacturer | NEC |
| Model Name | NLB150XG02L-01 |
| Screen Size | 15.0 inches |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 1024(RGB)*768 XGA 85PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 304.128(H)*228.096(V) mm |
| physical dimension | 326.5(H)*253.5(V) *12.1(Thick) mm |
| Open area | 307.4(H)*231.3(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 400 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Response time | 3/5 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 60% NTSC |
| type of light source | WLED, 50K hours, with LED driver |
| weight | 930/980g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C |
| Lcd Monitors 15.0 inch NLB150XG02L-01 1024(RGB)×768 TFT LCD Panel Screen Display Assembly Replacement | |
Why Choose US:
1.High quality,aff of items will be tested ok before ship out.
2.Best price,have a big inventory,so our price is more advantageous thanother companies.
3.Fast delivery,ship within 24 hours.
4.Small order accepted,MOQ 1PcS.
Payment Information:
T/T (Wire Transfer) / PayPal / western Union / MoneyGram
Shipping and Package :
Packaging & Shipping:
Packaging Deatils: Standard package
Delivery Detail: 1-2 days after payment
Shipment Information:
All the parts will be tested before shipment.
We can ship to you by DHL / FedEX / TNT / UPS / EMS… ,
you can choose the shipping method you prefer.
The buyer is responsible for any tax or duty charged by their country.
Refund&Replacement:
1. Please contact us within 7 days if you have any question after you receiving the items.
2.The returned items has to be in its original condition, specific reason for the return,
We will issue a return or replacement for your order after we received the returns.
3.The buyer is responsible for all the shipping cost incurred.
FAQ:
Q: How long is the warranty of NLB150XG02L-01 ?
A: 90days warranty .
Q: Do you accept sample orders for NLT NLB150XG02L-01 ?
A: Of course!sample order is welcome !
Q: Can I pay my goods NLB150XG02L-01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods NLB150XG02L-01 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
