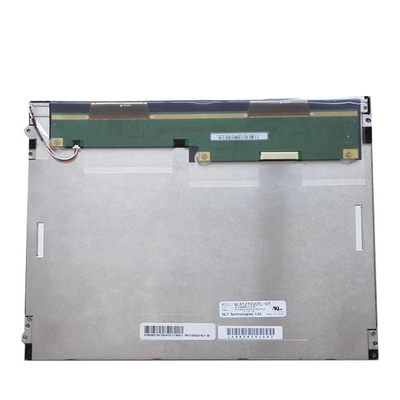

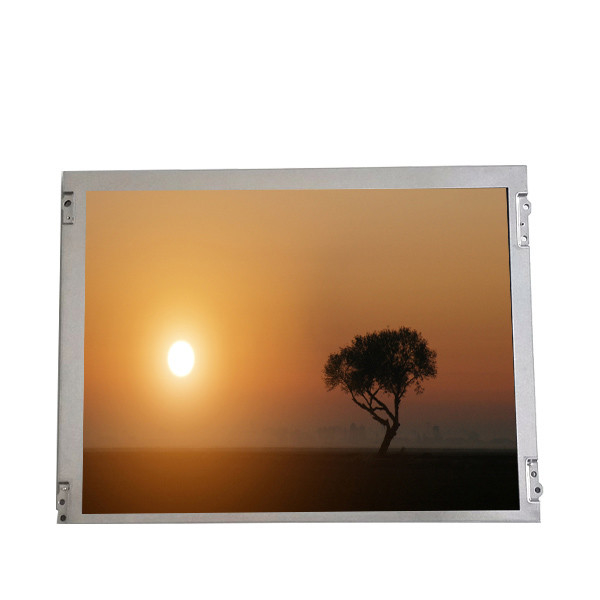

12.1 Inch RGB 800x600 Industrial LCD Monitors NLB121SV01L-01 Touch Display Replacement
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NLB121SV01L-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NLB121SV01L-01 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Active Area: | 246(H)×184.5(V) Mm |
| Outline Dim.: | 279(H)×209(V) ×9.5(D) Mm | Bezel Area: | 249.05(H)×188.3(V) Mm |
| Weight: | 540/580g (Typ./Max.) | Designed For: | Industrial |
| High Light: | RGB Industrial LCD Monitors,NLB121SV01L-01 Industrial LCD Monitors |
||
Product Description
12.1 inch 800(RGB)×600 LCD NLB121SV01L-01 LCD Monitors Touch Display Replacement
Product details :
| NEC LCD Screen NLB104SV01L-01 | |
| manufacturer | NEC |
| Model Name | NLB121SV01L-01 |
| Screen Size | 12.1 inches |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)*600 SVGA 82PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 246(H)*184.5(V) mm |
| physical dimension | 279(H)*209(V) *9.5(T) mm |
| Open area | 249.05(H)*188.3(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 450 cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 10 (Typ.)(Tr+Td) ms |
| Viewing angle | 80/80/65/75 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 55% NTSC |
| type of light source | WLED, 50K hours, with LED driver |
| weight | 540/580g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 12.1 inch 800(RGB)×600 LCD NLB104SV01L-01 LCD Monitors Touch Display Replacement | |
