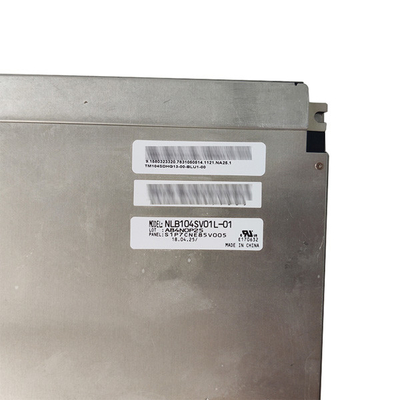

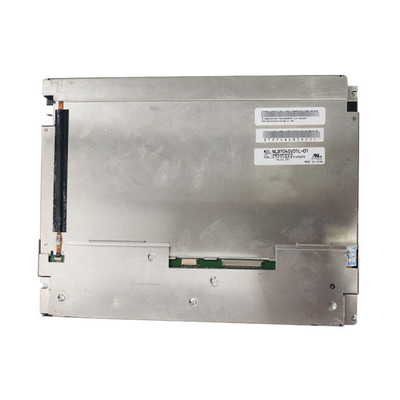

10.4 Inch Industrial LCD Panel Display RGB 800x600 NLB104SV01L-01 LCD Monitors
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NLB104SV01L-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NLB104SV01L-01 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600 [SVGA] 96PPI | Active Area: | 211.2(H)×158.4(V) Mm |
| Outline Dim.: | 243(H)×185.1(V) ×11(D) Mm | View Direction: | 6 O'clock |
| Weight: | 430/465g (Typ./Max.) | Designed For: | Industrial |
| High Light: | 10.4 inch Industrial LCD Panel Display,Matte Industrial LCD Panel Display,NLB104SV01L-01 Industrial LCD Monitor |
||
Product Description
10.4 inch 800(RGB)×600 NLB104SV01L-01 LCD Monitors Touch Screen Display Replacement
Product details :
| NEC LCD Screen NLB104SV01L-01 | |
| manufacturer | NEC |
| Model Name | NLB104SV01L-01 |
| Screen Size | 10.4 inches |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)*600 SVGA 96PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 211.2(H)*158.4(V) mm |
| physical dimension | 243(H)*185.1(V) *11(T) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 400 cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 40% NTSC |
| type of light source | WLED, 50K hours, with LED driver |
| weight | 430/465g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 10.4 inch 800(RGB)×600 NLB104SV01L-01 LCD Monitors Touch Screen Display Replacement | |
