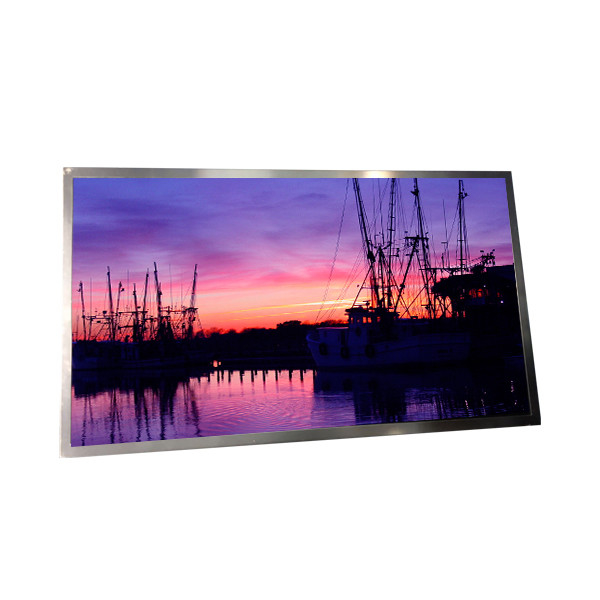

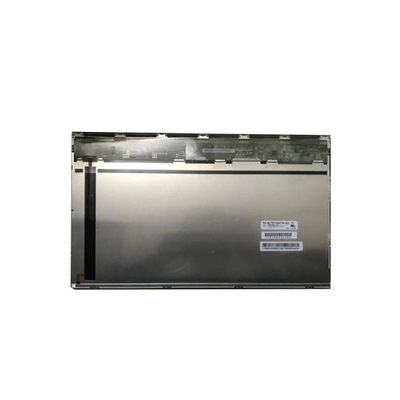

15.6 Inch NL192108AC18-01D LCD Panel Screen Display Assembly Replacement
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL192108AC18-01D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL192108AC18-01D | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 347.55(W)×196.75(H) Mm |
| Bezel Opening: | 380.32(W)×305.06(H) Mm | Outline Size: | 363.8(W)×215.9(H) ×6.8(D) Mm |
| Panel Weight: | 610/670g (Typ./Max.) | Application: | Industrial |
| High Light: | Matte LCD Panel Screen,NL192108AC18-01D LCD Panel Screen |
||
Product Description
15.6 inch NL192108AC18-01D LCD Panel Screen Display Assembly Replacement
Product details :
| NEC LCD Screen NL192108AC18-01D | |
| manufacturer | NEC |
| Model Name | NL192108AC18-01D |
| Screen Size | 15.6 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)*1080 [FHD] 141PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 344.16 * 193.59 mm (H*V) |
| physical dimension | 363.8 * 215.9 * 6.8 mm (H*V*D) |
| Visual size | 347.55 * 196.75 mm (H*V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | UA-SFT, normally black display, transmissive |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| responding speed | 25 (Typ.)(Tr+Td) ms |
| Number of colors | 16.7M, 72% NTSC |
| Backlight type | WLED, 50K hours, with LED driver |
| Screen weight | 610/670g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | eDP (2 Lanes), connector, 40 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -20 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 15.6 inch NL192108AC18-01D LCD Panel Screen Display Assembly Replacement | |
