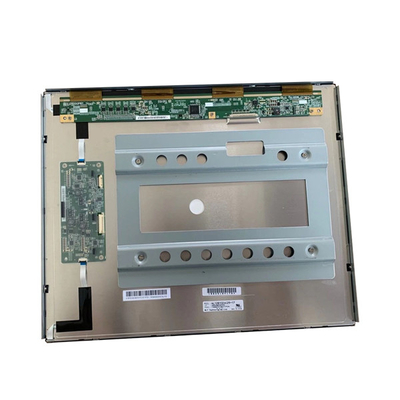

19 inch LCD panel NL128102AC29-17 support 1280(RGB)*1024 19 INCH LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL128102AC29-17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL128102AC29-17 | Panel Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA, 86PPI | Display Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.32(W)×305.06(H) Mm | Outline Size: | 396(W)×324(H) ×18.5(D) Mm |
| Weight: | 2.10/2.31Kgs (Typ./Max.) | Application: | Industrial |
Product Description
19 inch LCD panel NL128102AC29-17 support 1280(RGB)*1024 19 INCH LCD screen
Product details :
| NEC LCD Screen NL128102AC29-17 | |
| manufacturer | NEC |
| Model Name | NL128102AC29-17 |
| Screen Size | 19 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)*1024 [SXGA] 86PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 376.32 * 301.056 mm (H8V) |
| physical dimension | 396 * 324 * 18.5 mm (H*V*D) |
| Visual size | 380.32 * 305.06 mm (H*V) |
| Surface treatment | Matte, Hard coating (2H) |
| Brightness (cd/m²) | 800 (Typ.) |
| Contrast: | 1000: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | UA-SFT, normally black display, transmissive |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| responding speed | 14/11 (Typ.)(Tr+Td) ms |
| Number of colors | 16.7M, 100% sRGB |
| Backlight type | WLED, 94K hours, with LED driver |
| Screen weight | 2.10/2.31Kgs (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit), connector, 30 pins |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -20 ~ 70 °C |
| 19 inch LCD panel NL128102AC29-17 support 1280(RGB)*1024 19 INCH LCD screen | |
