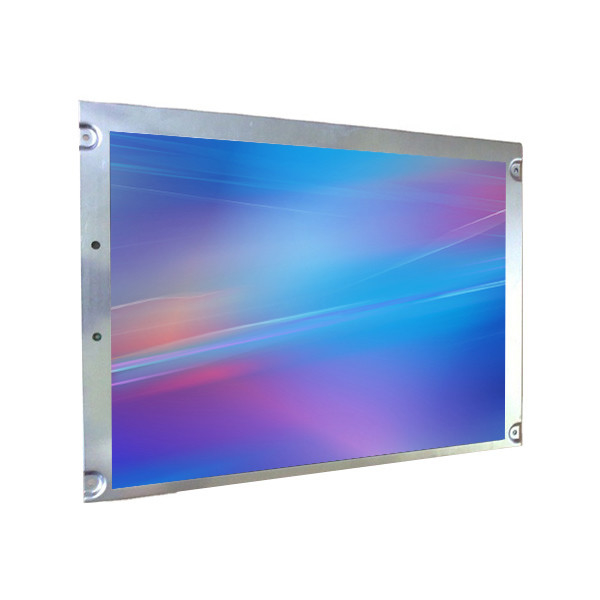

NL13676AC25-01D 15.6 inch 1366(RGB)×768 lcd panel display 20 pin lvds
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL13676AC25-01D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL13676AC25-01D | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768 (WXGA) 100PPI | Active Area(mm): | 344.232 × 193.536 (H×V) |
| Outline(mm): | 363.8 × 215.9 × 10.8 (H×V×D) | Bezel Area(mm): | 347.53 × 196.84 (H×V) |
| Mass: | 800/880g (Typ./Max.) | Used For: | Industrial |
Product Description
NL13676AC25-01D 15.6 inch 1366(RGB)×768 lcd panel display 20 pin lvds
Product details :
| NEC LCD Screen NL13676AC25-01D | |
| manufacturer | NEC |
| Model Name | NL13676AC25-01D |
| Screen Size | 15.6 inch |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 1366(RGB)*768, WXGA, 100PPI |
| Pixel layout | RGB vertical bar |
| Display area | 344.232(W)*193.536(H) mm |
| Viewable area | 347.53(W)*196.84(H) mm |
| physical dimension | 363.8(W)*215.9(H) *10.8(D) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 400 cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 3/15 (Typ.)(Tr/Td) ms |
| Display color | 262K/16.7M, 60% NTSC |
| type of light source | WLED, 70K hours, with LED driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 800/880g (Typ./Max.) |
| Signal interface | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Working: -20 ~ 70 °C; Storage: -20 ~ 80 °C |
| NL13676AC25-01D 15.6 inch 1366(RGB)×768 lcd panel display 20 pin lvds | |
1. Please send your RFQ(request for quoting) to get latest price;
2. we will ship it in 1-3 working days after your paying
3. We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
4. We have a large stock and the prices are variable,If needed please contact us.
Shipping and Package :
About Shipping:
Shipping:
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5, LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.
Russian customer attention: We can only send by EMS to Russia, EMS usually takes more days to arrive, so your patience is really appreciated.
Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
FAQ:
Q: How can I trace my order of NL13676AC25-01D ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods NL13676AC25-01D ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of NL13676AC25-01D ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL13676AC25-01D to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
