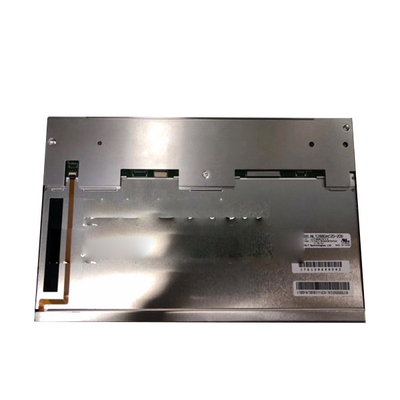

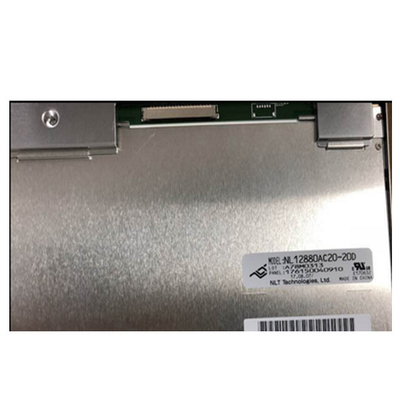

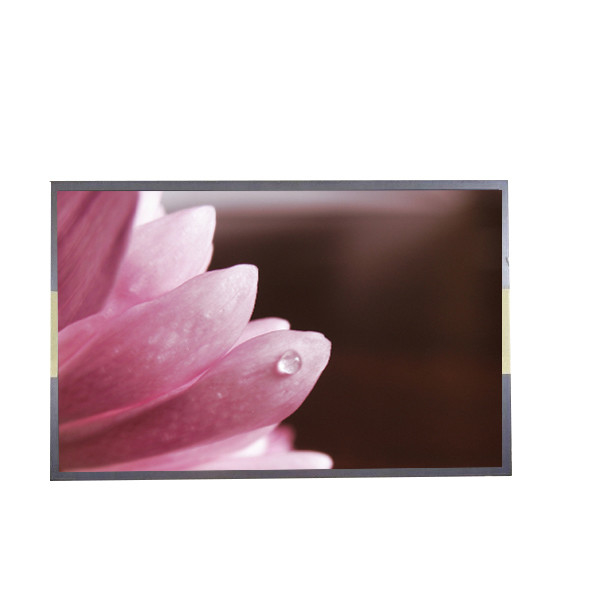

NL12880AC20-20D FOR NEC 12.1 inch 1280(RGB)×800 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12880AC20-20D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL12880AC20-20D | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×800 [WXGA] 124PPI | Active Area: | 261.12(H)×163.2(V) Mm |
| Outline Dim.: | 277.7(H)×180.6(V) ×9.2(D) Mm | Bezel Area: | 265.12(H)×167.2(V) Mm |
| Weight: | 500g (Typ.) | Designed For: | Industrial |
Product Description
NL12880AC20-20D FOR NEC 12.1 inch 1280(RGB)×800 LCD Screen Display Panel
Product details :
| NEC LCD Screen NL12880AC20-20D | |
| manufacturer | NEC |
| Model Name | NL12880AC20-20D |
| Screen Size | 12.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)*800 [WXGA] 124PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 261.12 * 163.2 mm (H*V) |
| physical dimension | 277.7 * 180.6 * 9.2 mm (H*V*D) |
| Visual size | 265.12 * 167.2 mm (H*V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | UA-SFT, normally black display, transmissive |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| responding speed | 12/13 (Typ.)(Tr/Td) ms |
| Number of colors | 16.7M, 40% NTSC |
| Backlight type | WLED, 50K hours, with LED driver |
| Screen weight | 500g (Typ.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -20 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL12880AC20-20D FOR NEC 12.1 inch 1280(RGB)×800 LCD Screen Display Panel | |
