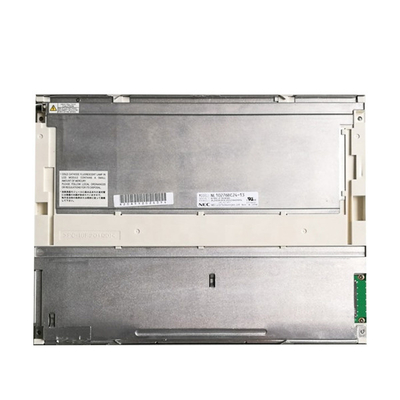

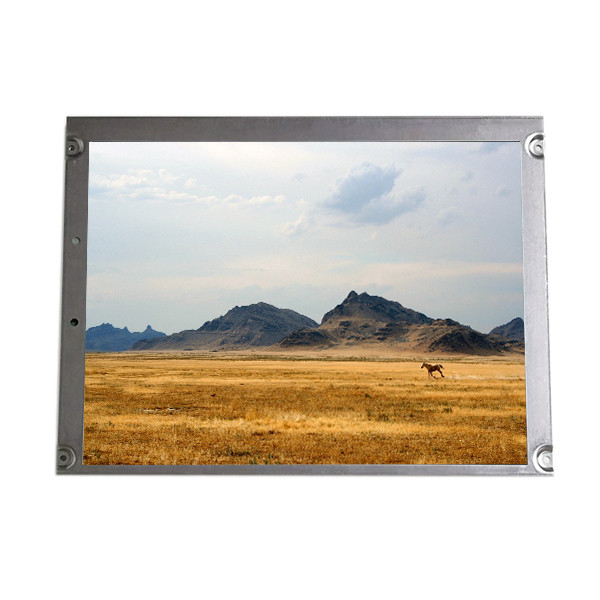

12.1 inch 1024*768 LCD Screen Panel for Industrial Application NL10276BC24-13
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | NEC |
| Model Number: | NL10276BC24-13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL10276BC24-13 | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768 (XGA) 105PPI | Active Area(mm): | 245.76 × 184.32 (H×V) |
| Outline(mm): | 280 × 210 × 13.7 (H×V×D) | Bezel Area(mm): | 249.0 × 187.5 (H×V) |
| Mass: | 750/780g (Typ./Max.) | Application: | Industrial |
Product Description
12.1 inch 1024*768 LCD Screen Panel for Industrial Application NL10276BC24-13
Product details :
| NEC LCD Screen NL10276BC24-13 | |
| manufacturer | NEC |
| Model Name | NL10276BC24-13 |
| Screen Size | 12.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)*768 [XGA] 105PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 245.76 * 184.32 mm (H*V) |
| physical dimension | 280 * 210 * 13.7 mm (H*V*D) |
| Visual size | 249.0 * 187.5 mm (H*V) |
| Surface treatment | Clear, Hard coating (3H) |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast | 600: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 70/70/45/55 (Typ.)(CR≥10) |
| responding speed | 8/25 (Typ.)(Tr/Td) ms |
| Number of colors | 262K/16.7M, 40% NTSC |
| Backlight type | 2 pcs CCFL, optional |
| Screen weight | 750/780g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 80 °C Working temperature: -10 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 12.1 inch 1024*768 LCD Screen Panel for Industrial Application NL10276BC24-13 | |
Payment:
1. We accept T/T(bank transfer), Western Union, Paypal for now.
2. Choosing Paypal need to pay extra 3% of total amount as handling charge.
3. If you have any problems of payment, please contact us freely.
Shipping and Package :
Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
Shipping:
1. Worldwide shipping.
2. Orders will be delivered in 3 working days after receiving full payment.
3. Major express partners: DHL, Fedex, TNT, EMS, Aramex.
4. We are not responsible for any customs duties and additional taxes.
Guarantee:
1. All LCD panels will be tested good before shipping.
2. Warranty period: 3 months
Refund&Return:
1. If the products you received are Non-artificial damaged, please notify us in 3 days.
2. Products should be returned with original package and be in good condition if possible.
3. Customers need to bear the freight of returned product.
FAQ :
Q: How long will I receive my goods NL10276BC24-13 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of NL10276BC24-13 ?
A:Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL10276BC24-13 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Do you accept sample orders of NL10276BC24-13 ?
A: Of course!sample order is welcome !
