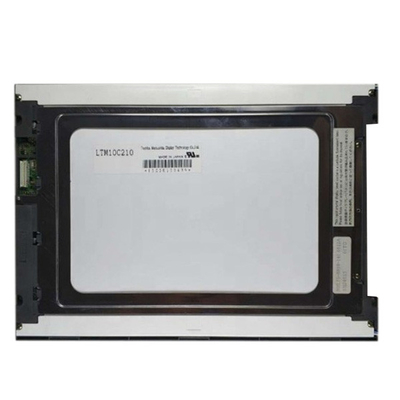

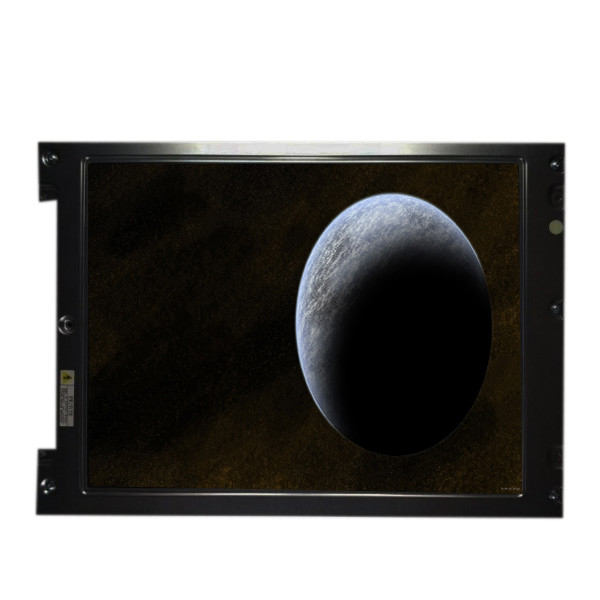

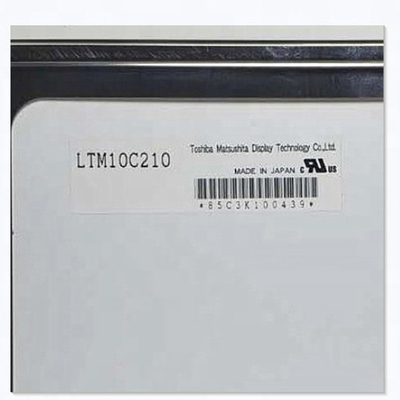

Lcd display LTM10C210 10.4 inch 640X480 TFT lcd screen for industrial machine in stock
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSHIBA |
| Model Number: | LTM10C210 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM10C210 | Diagonal Size: | 10.4 Inches |
|---|---|---|---|
| Resolution: | 640(RGB)×480 (VGA) 76PPI | Display Area: | 170.4 × 127.8 (H×V) |
| Viewing Angle: | 50/50/30/60 (Typ.)(CR≥10) | Display Colors: | 262K |
Product Description
Lcd display LTM10C210 10.4 inch 640X480 TFT lcd screen for industrial machine in stock
Product details :
| Toshiba Matsushita LCD SCREEN LTM10C210 | |
| Manufacturer | Toshiba |
| Model Name | LTM10C210 |
| Screen Size | 10.4 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 76PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 211.2 × 158.4 (H×V) |
| Outline(mm) | 265 × 188.8 × 12 (H×V×D) |
| Bezel Area(mm) | 216.2 × 163.4 (H×V) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (TM) |
| Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) |
| Response | 50/50 (Max.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 2 pcs CCFL , 50K hours , Without Driver |
| Mass | 650g (Typ.) |
| Application | Industrial |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit) , 31 pins Connector |
| Voltage Supply | 5.0V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Lcd display LTM10C210 10.4 inch 640X480 TFT lcd screen for industrial machine in stock | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Feedback:
1, When you get the goods , pls confirm that you have got the goods .
2, If you are satisfied with our products and service, please give us your positive feedback, that will be appreciated.
3, If you have any problem please contact us before giving any feedback , pls let us know about the problem . We will try our best to solve the problem for you ASAP. . Customers' satisfaction is very important to us .
Please let us know your requirements on panels
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
FAQ:
Q:Can You declare my order of LTM10C210 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q:Can you give me a discount if I need a large quantity of LTM10C210 ?
A:Of course!If you make a large order, we will give you a discount.
Q:Do you accept sample orders of LTM10C210 ?
A:Of course!sample order is welcome !
Q:Can I pay my order of LTM10C210 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
After service:
We can accept a 5-days return without reasons, and promise a warranty of 90 days for this item, and the shipping cost of returning should be afforded by the buyer.
Such as man-made factors, natural disasters caused damage will not in our warranty. For example: the installed improper, Nick, the tube touch bad, feed, etc... Store the selling of commodities have posted the warranty fragile tags, such as warranty tags in guarantee period be torn up. Disconnect or loss shall be deemed to be giving up the warranty, and we shall not accept any responsibility. Please attention!
Feedback:
1, When you get the goods , pls confirm that you have got the goods .
2, If you are satisfied with our products and service, please give us your positive feedback, that will be appreciated.
3, If you have any problem please contact us before giving any feedback , pls let us know about the problem . We will try our best to solve the
problem for you ASAP. . Customers' satisfaction is very important to us .
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
