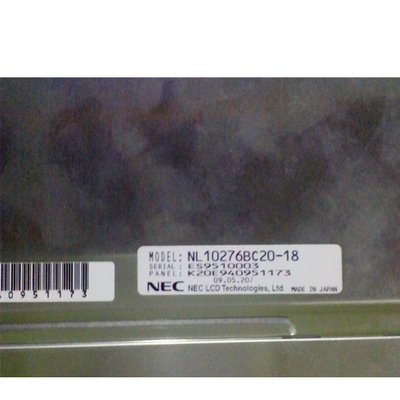

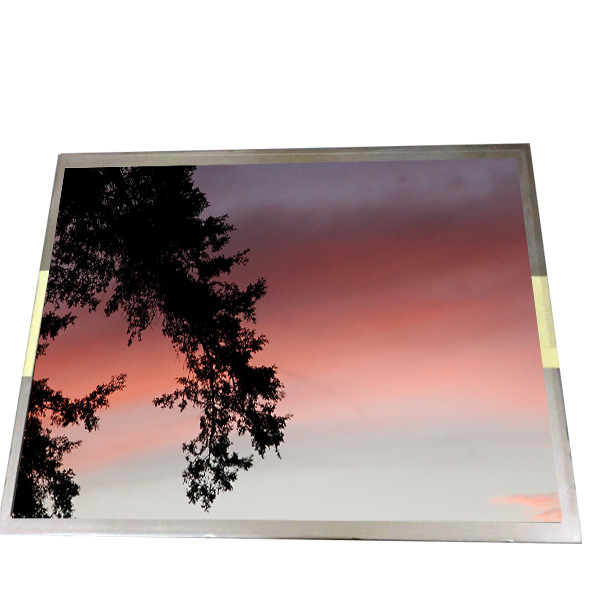

NL10276BC20-18 10.4 inch a-Si TFT-LCD LCM 1024(RGB)×768 lcd display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | NEC |
| Model Number: | NL10276BC20-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL10276BC20-18 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 123PPI | Display Area: | 210.4(W)×157.8(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 228(W)×178.5(H) ×9.2(D) Mm |
| Panel Weight: | 380/400g (Typ./Max.) | Application: | Industrial |
Product Description
NL10276BC20-18 10.4 inch a-Si TFT-LCD LCM 1024(RGB)×768 lcd display
Product details :
| NEC LCD Screen NL10276BC20-18 | |
| manufacturer | NEC |
| Model Name | NL10276BC20-18 |
| Screen Size | 10.4 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768 [XGA] 123PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 210.4 * 157.8 mm (H*V) |
| physical dimension | 228 * 178.5 * 9.2 mm (H*V*D) |
| Visual size | 215.4 * 161.8 mm (H*V) |
| Surface treatment | Clear, Hard coating (3H) |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast | 900: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| responding speed | 3/15 (Typ.)(Tr/Td) ms |
| Number of colors | 262K/16.7M, 40% NTSC |
| Backlight type | 2 strings WLED, 70K hours, optional |
| Screen weight | 380/400g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL10276BC20-18 10.4 inch a-Si TFT-LCD LCM 1024(RGB)×768 lcd display | |
Notice:
> Fast delivery
> 90days warranty
> original,High quality
> Full tested before shipping.
Welcome to order,we mainly sell Industrial LCD panels and touch screens , providing information and technical
consultation for all kinds of LCD screens and touch screens, Wehave many parts in stock ,such as the brand for
GT/GUNZE,FUJITSU,HITECH,SIEMENS,HAKKO,WEINVIW,ELO parts. And 4.7-15 inches is between the various size of
industrial screen, They are applicable to vehicles, medical equipments, injection molding machines ,industrial
equipments etc.
We offer high quality, fast delivery, competitive price for our customers;
Shipping and Package :
Shipping:
1, Pls make sure the lcd model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
Guarantee:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days.We reserve the right refusing any requirement that informs the seller longer than 7 days.We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
RMA not acceptable due to ordering the wrong model.
-Refund&Return:
1. If the item is defective, pls notify us within 3 days after receiving.
2. items should be returned with original package if possible.
FAQ :
Q: How can I trace my order of NL10276BC20-18 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods NL10276BC20-18 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of NL10276BC20-18 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of NL10276BC20-18 ?
A: Of course!If you make a large order, we will give you a discount.
