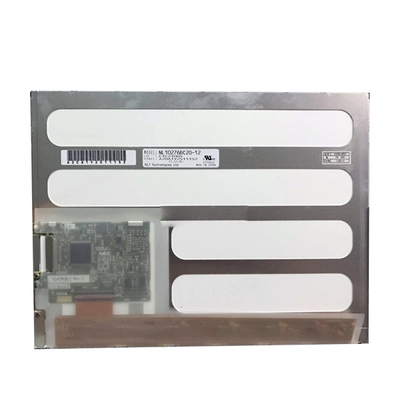

Original in stock 10.4 inch NL10276BC20-12 LCD Display Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | NEC |
| Model Number: | NL10276BC20-12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL10276BC20-12 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768, XGA, 123PPI | Display Area: | 210.4(W)×157.8(H) Mm |
| Bezel Opening: | 214.4(W)×161.8(H) Mm | Outline Size: | 231.2(W)×174.6(H) ×5.8(D) Mm |
| Weight: | 160/170g (Typ./Max.) | Application: | Industrial |
Product Description
Original in stock 10.4 inch NL10276BC20-12 LCD Display Screen
Product details :
| NEC LCD Screen NL10276BC20-12 | |
| manufacturer | NEC |
| Model Name | NL10276BC20-12 |
| Screen Size | 10.4 inch |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)*768 XGA 123PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 210.4(H)*157.8(V) mm |
| physical dimension | 231.2(H)*174.6(V) *5.8(T) mm |
| Open area | 214.4(H)*161.8(V) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 150 cd/m² (Typ.) |
| Contrast | 400:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 45/45/40/20 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 40% NTSC |
| type of light source | WLED, 30K hours, no driver |
| weight | 160/170g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| Original in stock 10.4 inch NL10276BC20-12 LCD Display Screen | |
