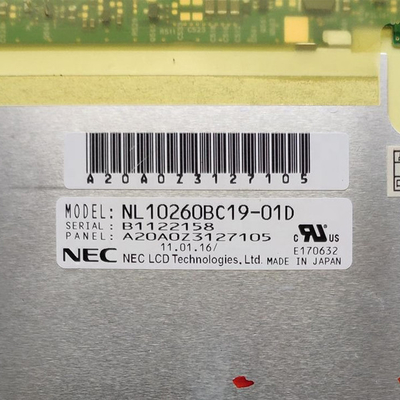

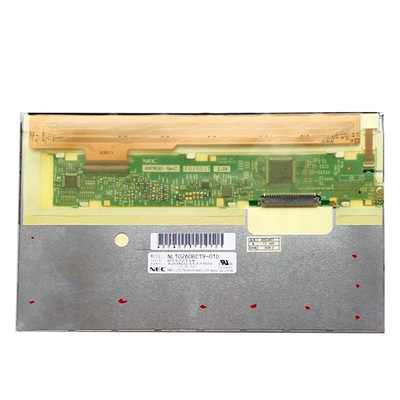

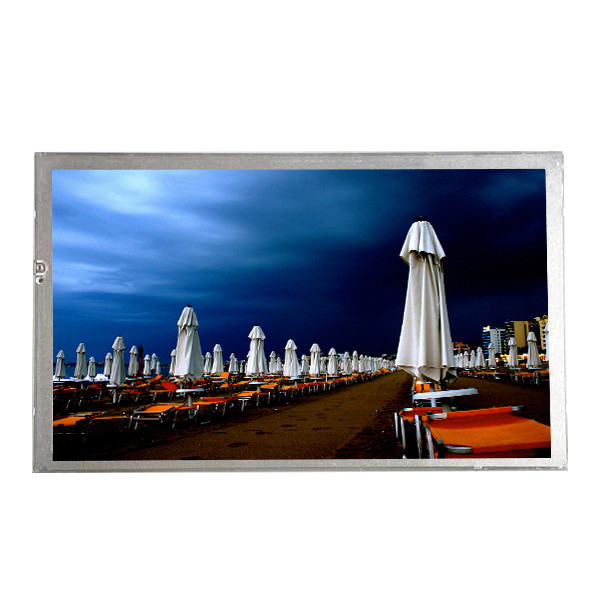

Original 8.9 inch NL10260BC19-01D LCD Display Module for Industrial Application
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | NEC |
| Model Number: | NL10260BC19-01D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL10260BC19-01D | Diagonal Size: | 8.9 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×600 [WSVGA] 133PPI | Active Area: | 195.072(H)×113.4(V) Mm |
| Outline Dim.: | 214(H)×129(V) ×6.2(D) Mm | Bezel Area: | 197.8(H)×116.0(V) Mm |
| Weight: | 170/180g (Typ./Max.) | Designed For: | Industrial |
Product Description
Original 8.9 inch NL10260BC19-01D LCD Display Module for Industrial Application
Product details :
| NEC LCD Screen NL10260BC19-01D | |
| manufacturer | NEC |
| Model Name | NL10260BC19-01D |
| Screen Size | 8.9 inch |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 1024(RGB)*600, WSVGA, 133PPI |
| Pixel layout | RGB vertical bar |
| Display area | 195.072(W)*113.4(H) mm |
| Viewable area | 197.8(W)*116.0(H) mm |
| physical dimension | 214(W)*129(H) *6.2(D) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 300 cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (TM) |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating mode | UA-SFT, normally black display, transmissive |
| Best perspective | Full view |
| Reaction time | 10/15 (Typ.)(Tr/Td) ms |
| Display color | 262K/16.7M, 60% NTSC |
| type of light source | WLED, 26K hours, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 170/180g (Typ./Max.) |
| Signal interface | LVDS (1 ch, 6/8-bit), 30 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Work: -20 ~ 70 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| Original 8.9 inch NL10260BC19-01D LCD Display Module for Industrial Application | |
