8.4 inch 800(RGB)×600 NL8060BC21-09 LCD Monitors Touch Screen Display Replacement
Product Details:
Place of Origin: | CHINA |
Brand Name: | NEC |
Model Number: | NL8060BC21-09 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton + Foam Cotton |
Delivery Time: | 5 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 600 Unit/Units per Month |
Detail Information |
|||
Model: | NL8060BC21-09 | Diagonal Size: | 8.4 Inch |
---|---|---|---|
Pixel Format: | 800(RGB)×600 [SVGA] 119PPI | Active Area: | 170.4(H)×127.8(V) Mm |
Outline Dim.: | 200(H)×152(V) Mm | Bezel Area: | 174.0(H)×131.4(V) Mm |
Weight: | 330/350g (Typ./Max.) | Designed For: | Industrial |
Product Description

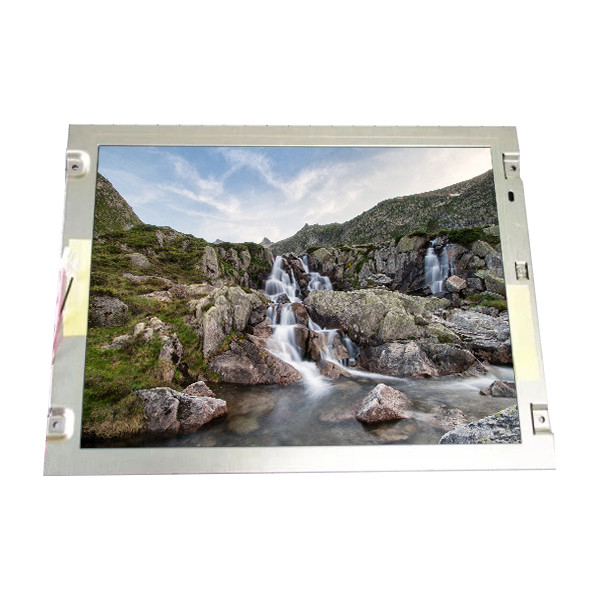

8.4 inch 800(RGB)×600 NL8060BC21-09 LCD Monitors Touch Screen Display Replacement
Product details :
NEC LCD SCREEN NL8060BC21-09 | |
manufacturer | NEC |
Model Name | NL8060BC21-09 |
screen size | 8.4 inch |
Screen type | LCM , a-Si TFT-LCD |
Resolution | 800(RGB)×600 (SVGA) 119PPI |
Pixel configuration | RGB Vertical Stripe |
Display size | 170.4 × 127.8 (H×V) |
physical dimension | 200 × 152 (H×V×D) |
Visual size | 174.0 × 131.4 (H×V) |
surface treatment | Clear, Hard coating (3H) |
Brightness | 250 cd/m² (Typ.) |
Contrast | 500 : 1 (Typ.) (TM) |
Best angle | 6 o'clock |
Optical mode | TN, Normally White, Transmissive |
Viewing angle | 60/60/45/55 (Typ.)(CR≥10) |
Responding time | 6/19 (Typ.)(Tr/Td) ms |
Number of color | 262K/16.7M 40% NTSC |
Backlight type | 2 pcs CCFL , 50K hours , No Driver |
Panel weight | 330/350g (Typ./Max.) |
Apply to | Industrial |
Refresh rate | 60Hz |
Touch function | No touch |
signal system | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²) |
NEC 8.4 inch TFT LCD Display NL8060BC21-09 |
Description:
1.Exactly the same items and pictures.
2.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
3.Each item has been checked and in good condition before shipping.
4. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
Shipping and Package :
About Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
Return:
We will mark items as"Sample" or "Gift" with lower product value so that to help you minimize or avoid GST or VT or other Import Taxes.
* About missing/defective parts, please notify us no later than 7 days after you receive the item and we will arrange re-shipment of the item.
*Buyer has to email us for the exchange notice prior to returning item, buyer will bear the freight & handling fee and the item must also
be in its box and package it very well when returning the items.
Every parts will be tested before delivery ,we are not responsible for any problems caused by unprofessional operation.
Refund will be made as soon as we get the parts, Shipping fee is non-refundable.Resending fee will be paid by buyer.
FAQ :
Q: How can I trace my order of NL8060BC21-09 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I place order now,when will you ship the goods of NL8060BC21-09 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of NL8060BC21-09?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of AAA?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90 days warranty .
