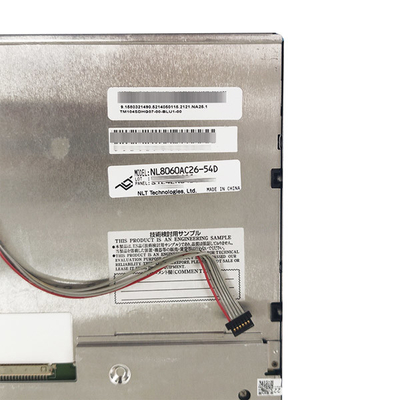

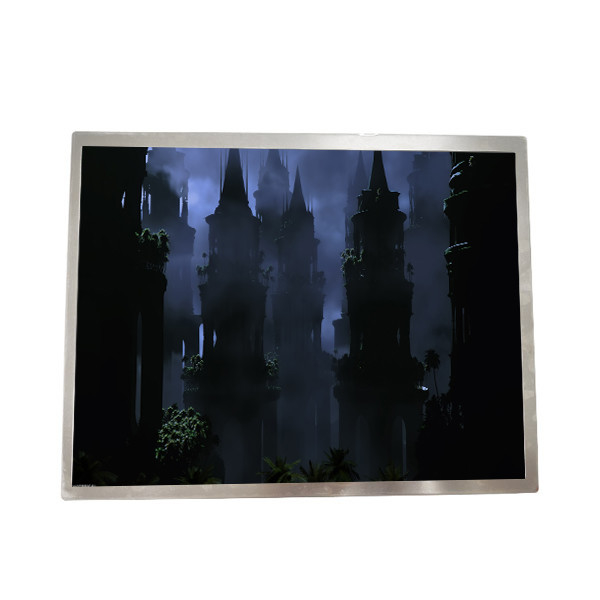

10.4 inch 800(RGB)×600 NL8060AC26-54D tft screen lcd display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | NEC |
| Model Number: | NL8060AC26-54D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL8060AC26-54D | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600 (SVGA) 96PPI | Active Area(mm): | 227.3 × 177.5 × 9.8 (H×V×D) |
| Outline(mm): | 227.3 × 177.5 × 9.8 (H×V×D) | Bezel Area(mm): | 215.4 × 161.8 (H×V) |
| Mass: | 375g (Typ.) | Used For: | Industrial |
Product Description
NL8048BC19-02 Original 7.0 inch LCD Display 800(RGB)×480 for Industrial Equipment for NEC
Product details :
| NEC LCD Screen NL8060AC26-54D | |
| manufacturer | NEC |
| Model Name | NL8060AC26-54D |
| Screen Size | 10.4 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600 [SVGA] 96PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 211.2 × 158.4 mm (H×V) |
| physical dimension | 227.3 × 177.5 × 9.8 mm (H×V×D) |
| Visual size | 215.4 × 161.8 mm (H×V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m²) | 450 (Typ.) |
| Contrast | 900: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| responding speed | 3/15 (Typ.)(Tr/Td) ms |
| Number of colors | 262K/16.7M, 40% NTSC |
| Backlight type | WLED, 100K hours, with LED driver |
| Screen weight | 375g (Typ.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C |
| 10.4 inch 800(RGB)×600 NL8060AC26-54D tft screen lcd display | |
Warm prompt:
(1),Please check carefully the machine with product before buying, if you are not sure, please feel free to contact us.We have professional repair engineers to help you confirm right model.
(2), Please check the package in good condition, if the outer package damage, please do not signature. And contact with us. Thanks for your cooperation.
(3),Buyer Please note:due to the same product,factory production batch is different,the row of lines of code can be different,or production line can be long,can also be shorter,but are all the same,the same technology,so the function of the use effect is the same, Please do not worry about it.
Description:
We are factory professional in touch screen digitizer.We offer hundreds kinds of screen panel digitizer and LCD screen.The more you need,the much better price,please contact whth US if large quantity.
We are not professional photographer, so the pictures are not very delicate, but all the products are brand-new and original.Thanks
Shipping and Package :
About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
About US:
We also can supply LCD and touch screens for 1.5 inch-88.0 inch applied on PDA,GPS,mobile phone,car dvd player,car dvd radio,digital camera and industrial products.
Bulk order is acceptable,low prices will be offered to you for bulk order.
Any questions pls contact me! Thanks.
FAQ :
Q: How long will I receive my goods NL8060AC26-54D ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of NL8060AC26-54D ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of NL8060AC26-54D ?
A: We accept T/T , Paypal , western union .
