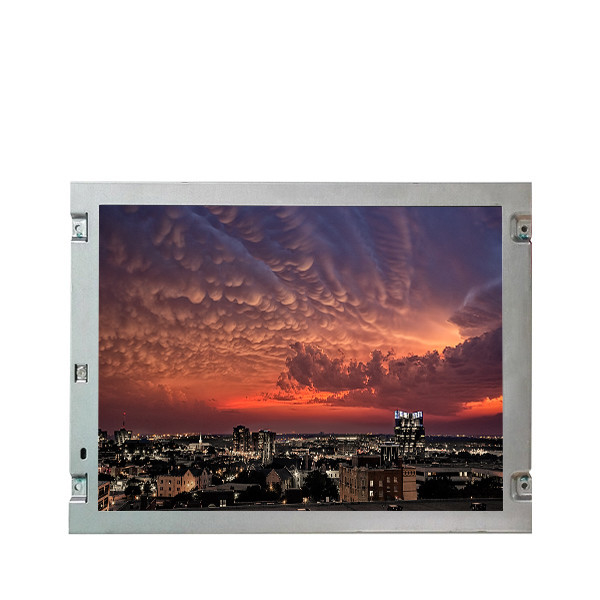

NL6448BC26-08D lcd display screen panel Repair Repalcement lcd touch screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | NEC |
| Model Number: | NL6448BC26-08D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL6448BC26-08D | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 [VGA] 95PPI | Active Area: | 170.88(H)×128.16(V) Mm |
| Bezel Area: | 174.0(H)×131.4(V) Mm | Outline Dim.: | 200(H)×152(V) Mm |
| Weight: | 330/350g (Typ./Max.) | Used For: | Industrial |
Product Description
NL6448BC26-08D lcd display screen panel Repair Repalcement lcd touch screen
Product details :
NL6448BC26-08D supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×128.16(H) mm, outline size of 200(W)×152(H) mm, viewing area size of 174.0(W)×131.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330/350g (Typ./Max.). As a UA-SFT, Normally Black, Transmissive LCM product, NL6448BC26-08D can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side), external backlight driver is additionally needed. NL6448BC26-08D utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
| NEC LCD Screen NL6448BC26-08D | |
| manufacturer | NEC |
| Model Name | NL6448BC26-08D |
| Screen Size | 8.4 inches |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480 VGA 95PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 170.88(H)×128.16(V) mm |
| physical dimension | 200(H)×152(V) mm |
| Open area | 174.0(H)×131.4(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 400 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| Recommended perspective | Full view |
| Response time | 10/10 (Typ.)(Tr/Td) ms |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display mode | UA-SFT, normally black display, transmissive |
| Support color | 262K/16.7M, 72% NTSC |
| type of light source | CCFL [2 pcs], no driver |
| weight | 330/350g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -10 ~ 70 °C; Storage temperature: -20 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC26-08D lcd display screen panel Repair Repalcement lcd touch screen | |
