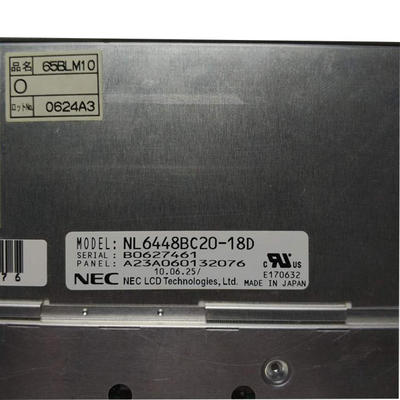

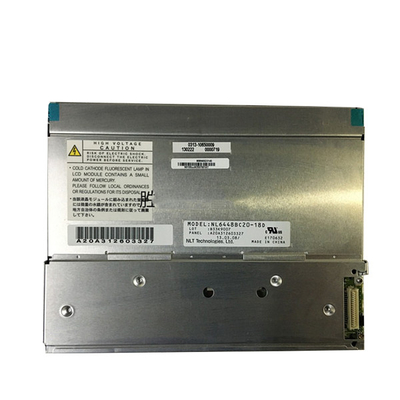

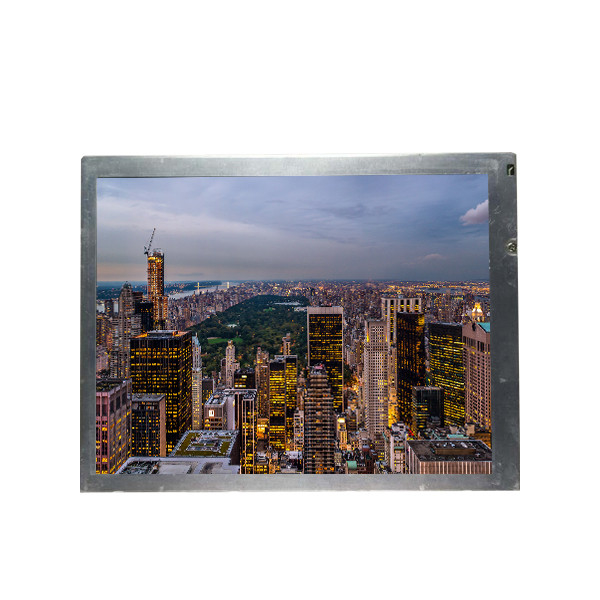

NL6448BC20-18D Original 6.5 inch 640(RGB)×480 TFT LCD screen display panel for Industrial Equipment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | NEC |
| Model Number: | NL6448BC20-18D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL6448BC20-18D | Panel Size: | 6.5" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA, 122PPI | Display Area: | 132.48(W)×99.36(H) Mm |
| Bezel Opening: | 135.9(W)×102.8(H) Mm | Outline Size: | 153(W)×118(H) Mm |
| Panel Weight: | 205/215g (Typ./Max.) | Used For: | Industrial |
Product Description
NL6448BC20-18D Original 6.5 inch 640(RGB)×480 TFT LCD screen display panel for Industrial Equipment
Product details :
| NEC LCD Screen NL6448BC20-18D | |
| manufacturer | NEC |
| Model Name | NL6448BC20-18D |
| Screen Size | 6.5 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 122PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 132.48 × 99.36 mm (H×V) |
| physical dimension | 153 × 118 mm (H×V×D) |
| Visual size | 135.9 × 102.8 mm (H×V) |
| Surface treatment | Matte, Hard coating (2H) |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast | 600: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| responding speed | 6/19 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 40% NTSC |
| Backlight type | 2 pcs CCFL, without driver |
| Screen weight | 205/215g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | CMOS (1 ch, 6-bit), connector, 31 pins |
| Supply voltage | 3.3/5.0V (Typ.)(VCC) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -10 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC20-18D Original 6.5 inch 640(RGB)×480 TFT LCD screen display panel for Industrial Equipment | |
Before you ordered:
1,Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen.
2,We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
3,For all the problems, Please send us message and we will solve the problem for you immediately
Payment:
1.- Please make sure your payment account is available before you bid the item.
2.- All payments should be cleared within 7days after you receive the item. If you really have difficulty in paying the item, please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
Shipping and Package :
About Shipping:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.
- We offer a 30days Money back or replacement (buyer's choice).
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
FAQ :
Q: How long is the warranty of NL6448BC20-18D ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of NL6448BC20-18D ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for NL6448BC20-18D ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of NL6448BC20-18D ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
