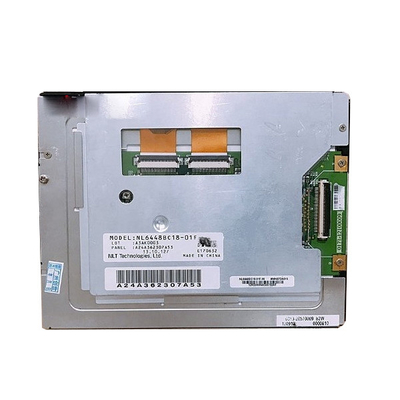

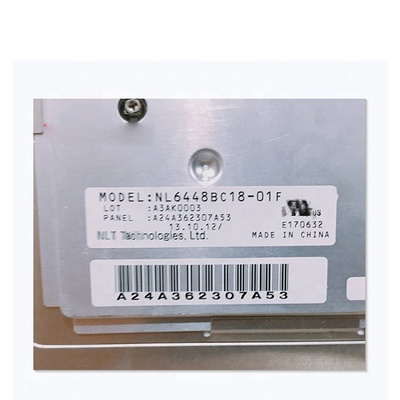

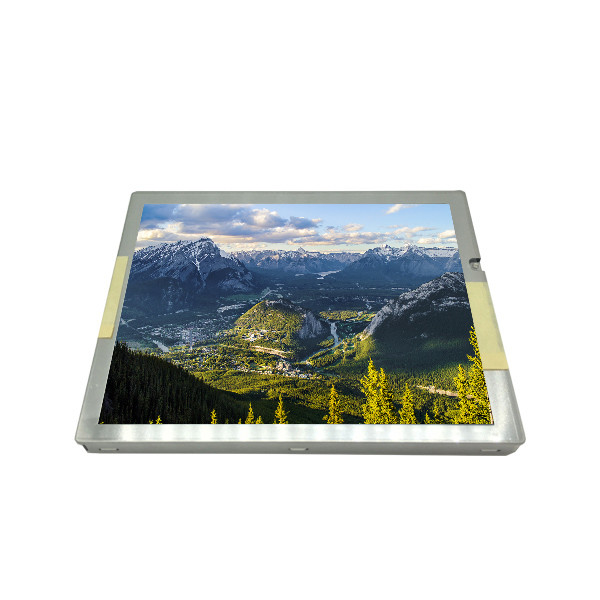

NL6448BC18-01F Brand New Original 5.7 inch LCD Display for Industrial Equipment for NEC
Product Details:
Place of Origin: | CHINA |
Brand Name: | NEC |
Model Number: | NL6448BC18-01F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton + Foam Cotton |
Delivery Time: | 5 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 600 Unit/Units per Month |
Detail Information |
|||
Panel Model: | NL6448BC18-01F | Panel Size: | 5.7" |
---|---|---|---|
Resolution: | 640(RGB)×480, VGA, 139PPI | Display Area: | 116.16(W)×87.12(H) Mm |
Bezel Opening: | 120.2(W)×91.2(H) Mm | Outline Size: | 135(W)×104.6(H) ×10.9(D) Mm |
Panel Weight: | 165/175g (Typ./Max.) | Used For: | Industrial |
Product Description
NL6448BC18-01F Brand New Original 5.7 inch LCD Display for Industrial Equipment for NEC
Product details :
NEC LCD Screen NL6448BC18-01F | |
manufacturer | NEC |
Model Name | NL6448BC18-01F |
Screen Size | 5.7 inch |
Screen type | LCM, a-Si TFT-LCD |
Resolution | 640(RGB)×480 [VGA] 139PPI |
Pixel configuration | RGB vertical bar |
Display size | 116.16 × 87.12 mm (H×V) |
physical dimension | 135 × 104.6 × 10.9 mm (H×V×D) |
Visual size | 120.2 × 91.2 mm (H×V) |
Surface treatment | Clear, Hard coating (3H) |
Brightness (cd/m²) | 800 (Typ.) |
Contrast | 850: 1 (Typ.) [Transmission] |
Best angle | 6 o'clock |
Optical mode | TN, normally white display, transmissive |
Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
responding speed | 3/15 (Typ.)(Tr/Td) ms |
Number of colors | 262K, 60% NTSC |
Backlight type | 9S2P×2CN WLED, 50K hours, no driver |
Screen weight | 165/175g (Typ./Max.) |
Refresh rate | 60Hz |
Touch function | No touch |
signal system | CMOS (1 ch, 6-bit), connector, 33 pins |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
NL6448BC18-01F Brand New Original 5.7 inch LCD Display for Industrial Equipment for NEC |
