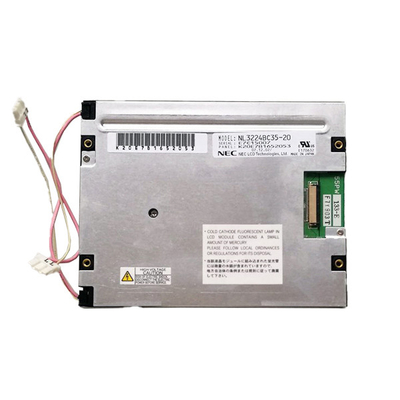

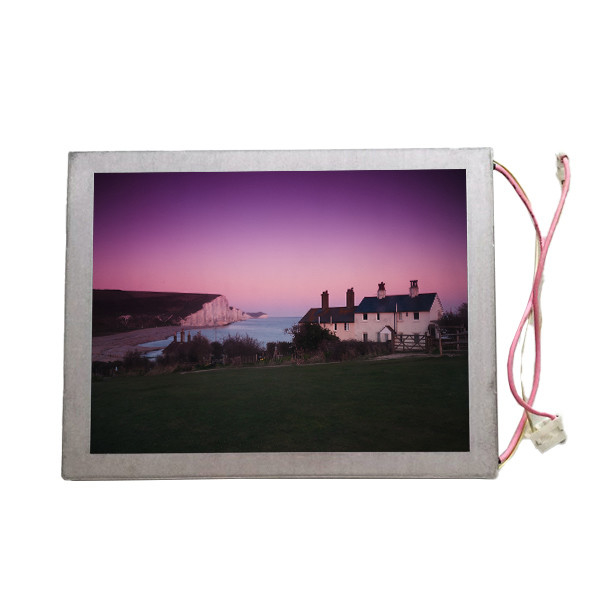

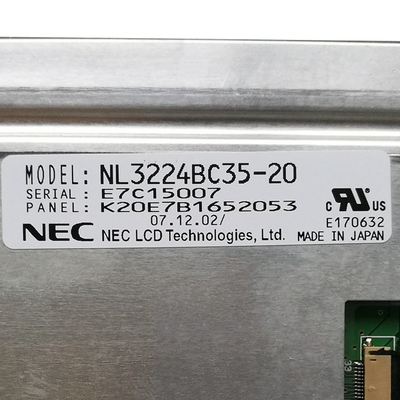

5.5 inch NL3224BC35-20 Lcd Screen Display Panel 320(RGB)×240
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | NEC |
| Model Number: | NL3224BC35-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL3224BC35-20 | Diagonal Size: | 5.5 Inch |
|---|---|---|---|
| Pixel Format: | 320(RGB)×240 (QVGA) 72PPI | Active Area(mm): | 111.36 × 83.52 (H×V) |
| Outline(mm): | 134 × 104.5 × 13 (H×V×D) | Bezel Area(mm): | 116.4 × 88.5 (H×V) |
| Mass: | 210/220g (Typ./Max.) | Used For: | Industrial |
Product Description
5.5 inch NL3224BC35-20 Lcd Screen Display Panel 320(RGB)×240
Product details :
| NEC LCD Screen NL3224BC35-20 | |
| manufacturer | NEC |
| Model Name | NL3224BC35-20 |
| Screen Size | 5.5 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 320(RGB)×240 [QVGA] 72PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 111.36 × 83.52 mm (H×V) |
| physical dimension | 134 × 104.5 × 13 mm (H×V×D) |
| Visual size | 116.4 × 88.5 mm (H×V) |
| Surface treatment | Matte, Hard coating (3H), anti-reflection treatment |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast | 400: 1 (Typ.) [Transmission] |
| Best angle | 12 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 55/55/50/40 (Typ.)(CR≥10) |
| responding speed | 5/25 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 50% NTSC |
| Backlight type | 2 pcs CCFL, 40K hours, without driver |
| Screen weight | 210/220g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | CMOS (1 ch, 6-bit), connector, 33 pins |
| Supply voltage | 3.3/5.0V (Typ.)(VCC) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -10 ~ 70 °C; Vibration resistance: 3.0G (29.4 m/s²) |
| 5.5 inch NL3224BC35-20 Lcd Screen Display Panel 320(RGB)×240 | |
