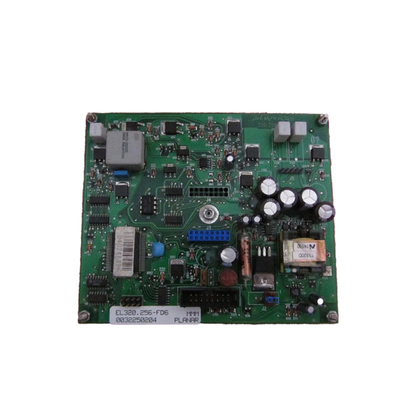

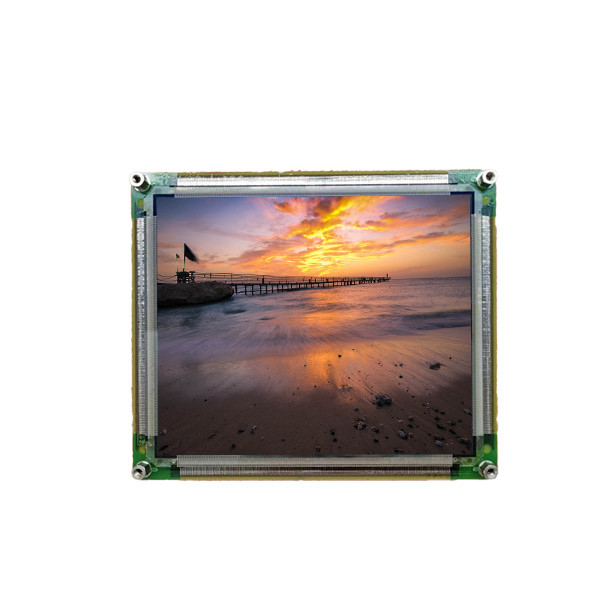

EL320.256-FD6 Original 4.8 inch LCD Display for Industrial for PLANAR
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Lumineq |
| Model Number: | EL320.256-FD6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model: | EL320.256-FD6 | Diagonal Size: | 4.8 Inch |
|---|---|---|---|
| Pixel Format: | 320×256 84PPI | Active Area: | 95.9(H)×76.7(V) Mm |
| Outline Dim.: | 130(H)×110(V) Mm | Support Color: | Mono(Yellow) |
| Weight: | 260g (Max.) | Designed For: | Industrial |
Product Description
EL320.256-FD6 Original 4.8 inch LCD Display for Industrial for PLANAR
Product details :
| Lumineq LCD Screen EL320.256-FD6 | |
| manufacturer | Lumineq |
| Model Name | EL320.256-FD6 |
| Screen Size | 4.8 inches |
| Screen type | EL, EL display |
| Number of pixels | 320×256, 84PPI |
| Pixel layout | rectangle |
| Display area | 95.9(W)×76.7(H) mm |
| physical dimension | 130(W)×110(H) mm |
| Panel brightness | 25 cd/m² (Typ.) |
| Contrast | 12:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.) |
| Best perspective | Full view |
| Reaction time | 1 (Max.) ms |
| Display color | Single color (yellow) |
| type of light source | Self-luminous, 50K hours |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 260g (Max.) |
| Drive screen voltage | 5/(10.8~30)V (Typ.)(VCC1/VCC2) |
| working environment | Working: -25 ~ 65 °C; Storage: -40 ~ 85 °C |
| EL320.256-FD6 Original 4.8 inch LCD Display for Industrial for PLANAR | |
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
Shipping and Package :
Shipping :
1, Shipping via Express line Standard Shipping.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 10-20 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
We will send the product in 3 working days ASAP after you placed an order.(Expcet holiday)
Please confirm your order address and phone number is right, if you want to change the address, contact us firsly.
The shipping by the normal way will arrive in 15-60 days. If you need the product urgently, please contact us to send by express shipping,we will check the express shipping cost for you.
Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP.
NOTE:
No matter what happened, please feel free to contact us at the first time instead of leaving a negative feedback or opening dispute.
We will try our best to help you solve the problem or resend/refund you. Please trust us and give us a chance to serve you.
If you don't received the items in 15-60 days, please check the tracking number or contact us.
Any operation problems, We can provide the wireless technology support in working time.
If the goods broken during the shipping, please contact us after received the goods, we will resend or refund you.
One year warranty from the day the product sold. Some technical issue can be solved online.
FAQ :
Q: Can You declare my order of EL320.256-FD6 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of EL320.256-FD6 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of EL320.256-FD6 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of EL320.256-FD6 ?
A: Of course!If you make a large order, we will give you a discount.
