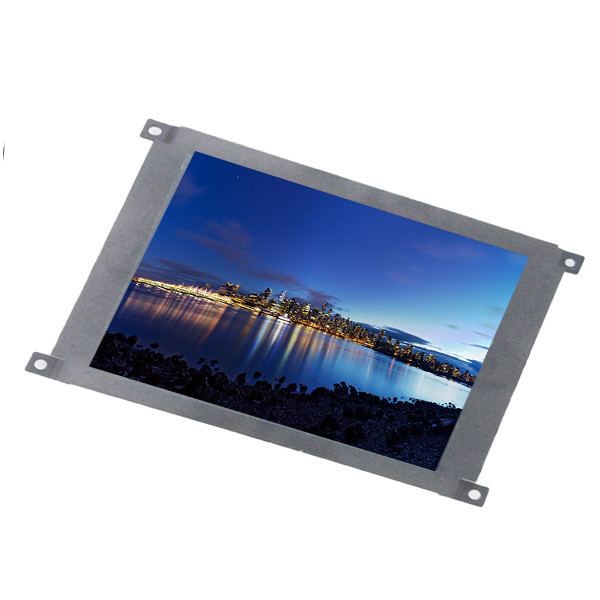

4.9 inch 320×240 Self backlight EL LCD Screen Display EL320.240-FA3
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Lumineq |
| Model Number: | EL320.240-FA3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model: | EL320.240-FA3 | Diagonal Size: | 4.9 Inch |
|---|---|---|---|
| Pixel Format: | 320(RG)×240 [QVGA] 81PPI | Active Area: | 99.15(H)×74.36(V) Mm |
| Outline Dim.: | 150.3(H)×104.8(V) Mm | Luminance: | 95 Cd/m² (Typ.) |
| Weight: | 198g | Designed For: | Industrial |
Product Description
4.9 inch 320×240 Self backlight EL LCD Screen Display EL320.240-FA3
Product details :
| Lumineq LCD SCREEN EL320.240-FA3 | |
| Manufacturer | Lumineq |
| Model Name | EL320.240-FA3 |
| Screen Size | 4.9 inches |
| Screen type | EL, EL display |
| Number of pixels | 320(RG)×240, QVGA, 81PPI |
| Pixel layout | RG vertical strip |
| Display area | 99.15(W)×74.36(H) mm |
| physical dimension | 150.3(W)×104.8(H) mm |
| Panel brightness | 95 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.) |
| Best perspective | Full view |
| Reaction time | 1 (Max.) ms |
| Display color | 16 colors |
| type of light source | Self-luminous, 50K hours |
| working frequency | 120Hz |
| touch screen | No touch |
| Panel weight | 198g |
| Drive screen voltage | 12.0V (Typ.) |
| working environment | Work:-50 ~ 85 °C; Storage: -50 ~ 105 °C; Vibration resistance: 5.0G (49.0 m/s²) |
| 4.9 inch 320×240 Self backlight EL LCD Screen Display EL320.240-FA3 | |
Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
Shipping and Package :
Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
Return items must have all original packaging and in good condition.
FAQ :
Q: How long the warranty of EL320.240-FA3 ?
A: 90 DAYS.
Q: How to order lcd panel EL320.240-FA3 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order of AUO EL320.240-FA3 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: What happen if AUO tft-lcd EL320.240-FA3 I received can't work ?
A: Our AUO lcd EL320.240-FA3 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
