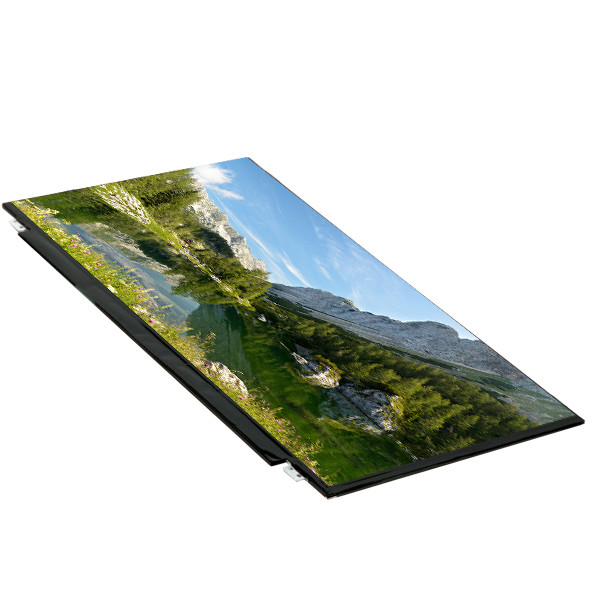

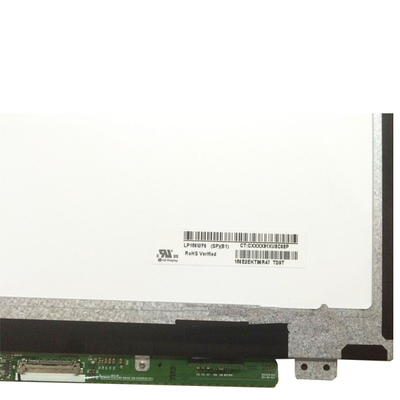

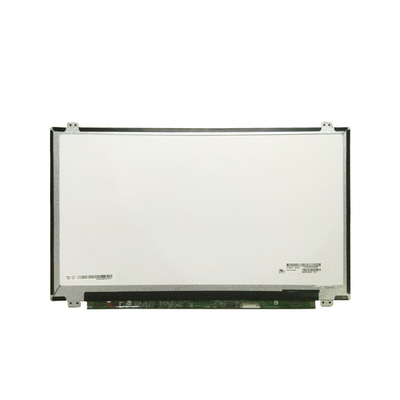

30 Pins LCD Laptop Screen FHD RGB 1920X1080 LCD Panel LP156WF6-SPB1
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LP156WF6-SPB1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LP156WF6-SPB1 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 141PPI | Active Area: | 344.16(H)×193.59(V) Mm |
| Outline Dim.: | 359.5(H)×223.8(V) ×3.2(D) Mm | Bezel Area: | 347.45(H)×196.8(V) Mm |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| High Light: | FHD RGB LCD Laptop Screen,LP156WF6-SPB1 LCD Laptop Screen,RGB Laptop LCD Panel |
||
Product Description
laptop lcd 30 pins laptop screen 1920(RGB)×1080 lcd panel LP156WF6-SPB1
Product details :
| LG Display LCD Screen LP156WF6-SPB1 (LGD046F) | |
| manufacturer | LG Display |
| Model Name | LP156WF6-SPB1 (LGD046F) |
| Screen Size | 15.6 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1920(RGB)×1080 [FHD] 141PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 344.16 × 193.59 mm (H×V) |
| physical dimension | 359.5 × 223.8 × 3.2 mm (H×V×D) |
| Visual size | 347.45 × 196.8 mm (H×V) |
| Surface treatment | Matte |
| Brightness (cd/m²) | 300 (Typ.) |
| Contrast | 700: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | AH-IPS, normally black display, transmissive |
| Viewing angle | 80/80/80/80 (Min.)(CR≥10) |
| responding speed | 25 (Typ.)(Tr+Td) ms |
| Number of colors | 262K, 72% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Appearance style | Thin screen (PCBA straight, thickness ≤3.2mm) |
| Refresh rate | 60Hz |
| signal system | eDP (2 Lanes), HBR1 (2.7G/lane), Connector, 30 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| laptop lcd 30 pins laptop screen 1920(RGB)×1080 lcd panel LP156WF6-SPB1 | |
Payment:
1.We accept Creditcard,Western union,all major creditcards are accepted through secure payment processor ESCROW by Alipay.
2.Please leave your note for your special request (e.g. COLORS or SIZE)when you pay the order.
3.Any special request can not be accepted after 24 hours of payment,because most of orders will be processed instantly and same day dispatched.
Shipping and Package :
Shipping:
1. The items you ordered will be shipped out in 1-3 business days by china post air mail when your payment is clear.The arrival time 5-30 business days to united states usually.
2.Customs duty is obligation and liability of a citizen in your country, so buyer should be responsible for any tax and custom duty incurred.Generally,the delay or failure delivery is sometimes caused by the policy of different customs,For example,laser pointer is unacceptable in some countries. Therefore,please double check your local customs policy carefully before purchase,or we will never respossible for any failure delivery related destination custom issue.
3.We ensure dispatch the item within 1-3 business days, however you bought the item from opposite side of the earth, so it needs a little longer time to deliver.Please place order only if you agree with the shipping time and all the terms below.
Return:
· Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
· Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
About notes:
This price does not include any taxes and import duties
If you need a large quantity, we will give you some discount.
FAQ :
Q: How long is the warranty of LP156WF6-SPB1 ?
A: 90 days warranty .
Q: Can I pay my goods LP156WF6-SPB1 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of lcd panel LP156WF6-SPB1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
