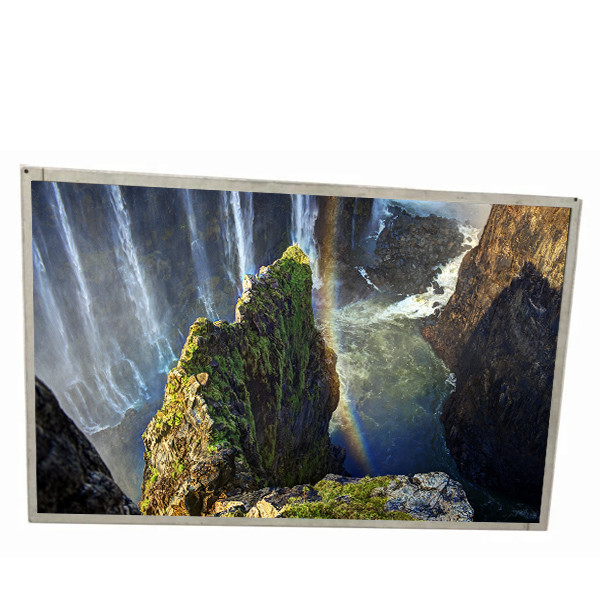

24.0 Inch LG Industrial TFT LCD Module LM240WU8-SLE1 For Computer Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LM240WU8-SLE1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM240WU8-SLE1 | Panel Size: | 24.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA, 94PPI | Display Area: | 518.4(W)×324(H) Mm |
| Outline Size: | 546.4(W)×352(H) ×12.2(D) Mm | Bezel Opening: | 522.4(W)×328.0(H) Mm |
| Panel Weight: | 2.65/2.78Kgs (Typ./Max.) | Application: | Desktop Monitor / Industrial / Medical Imaging / Digital Signage |
| High Light: | LG Industrial TFT LCD Module,LM240WU8-SLE1 TFT LCD Module |
||
Product Description
Product details :
| 24.0 inch LG Industrial TFT LCD Module LM240WU8-SLE1 for Computer Display | |
| Manufacturer | LG Display |
| Model Name | LM240WU8-SLE1 |
| Screen Size | 24.0 inch |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200 WUXGA 94PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 518.4(H)×324(V) mm |
| physical dimension | 546.4(H)×352(V) ×12.2(T) mm |
| Open area | 522.4(H)×328.0(V) mm |
| Surface treatment | Matte (Haze 25%), Hard coating (3H) |
| Display brightness | 300 cd/m2 (Typ.) |
| Contrast | 1000:1 (Typ.) (transmission) |
| Recommended perspective | Full view |
| Response time | 14 (Typ.)(G to G) ms |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display mode | AH-IPS, normally black display, transmissive |
| Support color | 16.7M, 100% sRGB |
| type of light source | WLED [17S2P], 30K hours, no driver |
| weight | 2.65/2.78Kgs (Typ./Max.) |
| Frame rate | 60Hz |
| Interface Type | 30 pins LVDS (2 ch, 8-bit), connector |
| Voltage supply | 10.0V (Typ.) |
| Application Environment | Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C |
Payment and Tax:
1.Alipay is perferred and safety.
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
3.The order will be cancelled beyond 7 business days on unpaid station.
Shipping and Package :
About shipment:
We ship the products all over the world, the delivery time is 3-5 working days after payment confirmation. You can also choose the operator, and you will be informed of the extra charges in remote areas as soon as possible.
We usually ship to the address is registered by you, temporarily do not support to modify the address.
All prices do not include import and export duties and need to be paid by the buyer. (we will cooperate with the declaration information you need)
About after sales service:
When you receive the package, please open it and check it before signing. If there is any physical damage, please ask the delivery company for "damage certificate", otherwise we will not accept any return due to physical damage.
Please feel free to contact us if there are any functional problems with our products during the warranty period.
The returned goods must include all the packaged accessories. Please contact us before delivery.
Return by post and no refund of insurance premium
The warranty period of all products is 60 days, effective from the date you receive the products
Return:
1.Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
2.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
FAQ :
Q: How long will I receive my goods LM240WU8-SLE1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of LM240WU8-SLE1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of LM240WU8-SLE1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
