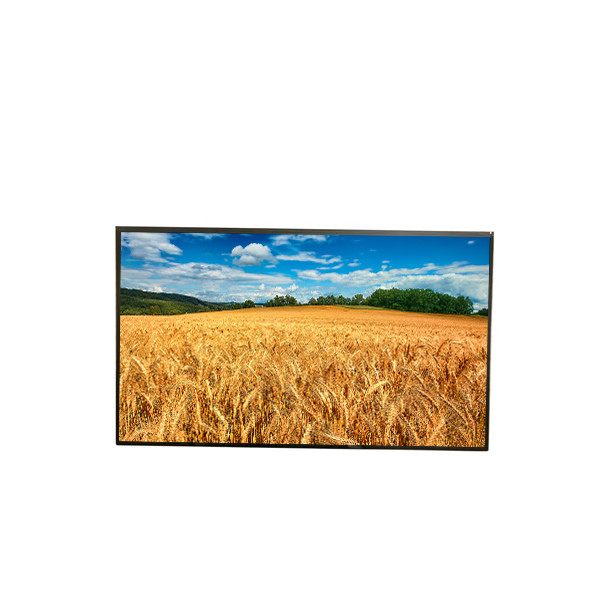

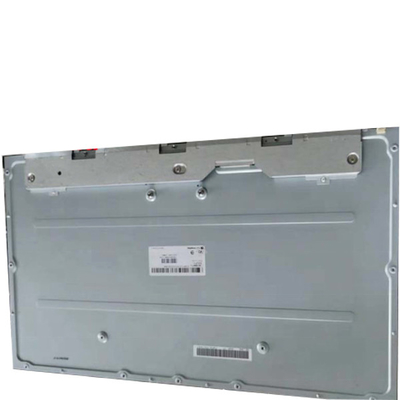

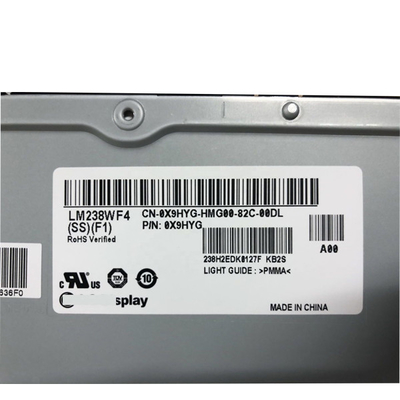

Original in stock 23.8 inch LM238WF4-SSF1 LCD Display Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LM238WF4-SSF1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM238WF4-SSF1 | Panel Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 92PPI | Display Area: | 527.04(W)×296.46(H) Mm |
| Outline Size: | 534.9(W)×306.95(H) ×12.9(D) Mm | Brightness: | 250 Cd/m² (Typ.) |
| Panel Weight: | 2.00/2.10Kgs (Typ./Max.) | Application: | Desktop Monitor / Industrial |
Product Description
Original in stock 23.8 inch LM238WF4-SSF1 LCD Display Screen
Product details :
| Manufacturer | LG Display |
| Model Name | LM238WF4-SSF1 |
| Screen Size | 23.8 inch |
| screen size | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 (FHD) 92PPI |
| Pixel layout | RGB vertical bar |
| Display size | 527.04 × 296.46 (H×V) mm |
| physical dimension | 534.9(W)×306.95(H) ×12.9(D) mm |
| Surface treatment | Matte(Haze 25%), Hard coating (3H) |
| Panel brightness | 250 cd/m2 (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating mode | IPS, normally black display, transmissive |
| Best perspective | Full view |
| Reaction time | 14 (Typ.)(G to G) ms |
| Display color | 16.7M, 99% sRGB |
| type of light source | 14S4P WLED, 30K hours, without driver |
| working frequency | 60Hz |
| Panel weight | 2.00/2.10Kgs (Typ./Max.) |
| Signal interface | LVDS (2 ch, 8-bit), 30 pins, connector |
| Drive screen voltage | 5.0V (Typ.) |
| working environment | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
Explain:
1. The service time is from Monday to Saturday
2. delivery time: 6 working days
3. The warranty period is 60 days, effective from the date of receiving the products
4. The returned goods must be kept as they are. Freight is not refundable.
5. The price does not include any tax and import tax
6. If you have any problems, please contact us first, and we will actively solve the problems for you
Payment:
1.We accept Creditcard,Western union, all major creditcards are accepted through secure payment processor ESCROW by Alipay.
2.Please leave your note for your special request (e.g. COLORS or SIZE)when you pay the order.
3.Any special request can not be accepted after 24 hours of payment,because most of orders will be processed instantly and same day dispatched.
Shipping and Package :
Shipment:
1. The LCD Screen will be fully tested before shipment. If it fails the test, we will not ship it and contact the buyer.
2. If you need to change the shipping address, please contact the seller's customer service personnel
3. There are many modes of freight transportation in our shop. Customers can choose their own mode of transportation
About after sales service:
When you receive the package, please open it and check it before signing. If there is any physical damage, please ask the delivery company for "damage certificate", otherwise we will not accept any return due to physical damage.
Please feel free to contact us if there are any functional problems with our products during the warranty period.
The returned goods must include all the packaged accessories. Please contact us before delivery.
Return by post and no refund of insurance premium
The warranty period of all products is 60 days, effective from the date you receive the products
FAQ :
Q: How long is the warranty of LG Display LM238WF4-SSF1 ?
A: 90 days warranty .
Q: How can I trace my order of LM238WF4-SSF1 ?
A: we will give you tracking number then you can trace your order form website.
Q: How do you ship my goods LM238WF4-SSF1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
