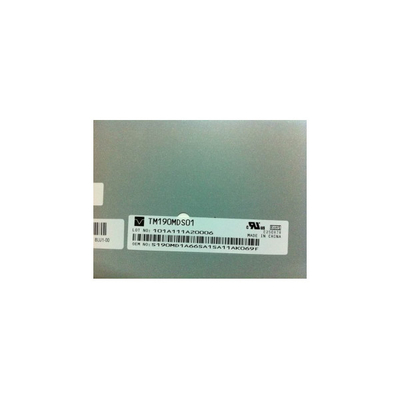

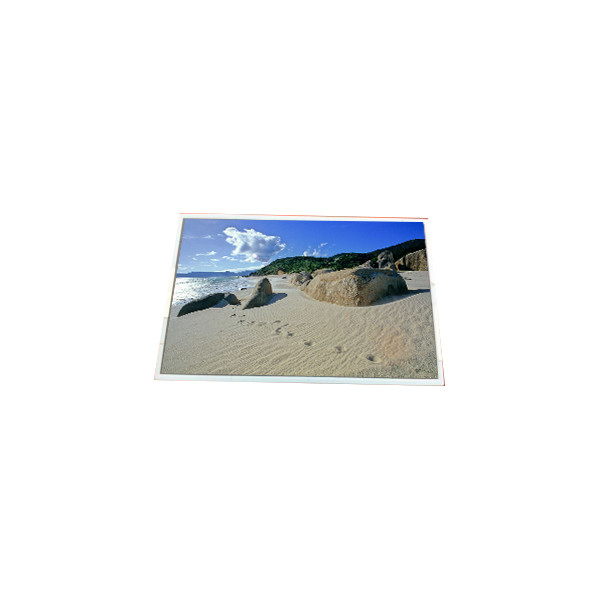

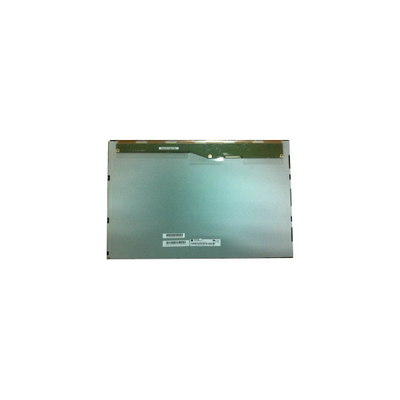

19.0 inch 1440*900 TM190MDS01 LCD Monitors Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TIANMA |
| Model Number: | TM190MDS01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM190MDS01 | Screen Size: | 19.0" |
|---|---|---|---|
| Pixel Number: | 1440(RGB)×900, WXGA+ 89PPI | Active Area: | 408.24(W)×255.15(H) Mm |
| Outline Dim.: | 428(W)×278(H)×10.3(D) Mm | Treatment: | Antiglare |
| Response Time: | 1.3/3.7 (Typ.)(Tr/Td) | Designed For: | Desktop Monitor |
Product Description
19.0 inch 1440*900 TM190MDS01 LCD Monitors Screen Display
Product details :
| Brand | TIANMA |
| Model P/N | TM190MDS01 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.24(W)×259.14(H) mm |
| Outline Dim. | 428(W)×278(H)×10.3(D) mm |
| Luminance | 250 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Support Color | 16.7M 68% NTSC |
| Weight | 1.70Kgs (Max.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED [10S4P] , 30K hours , W/O Driver |
| Designed For | Desktop Monitor |
| Touch Panel | Without |

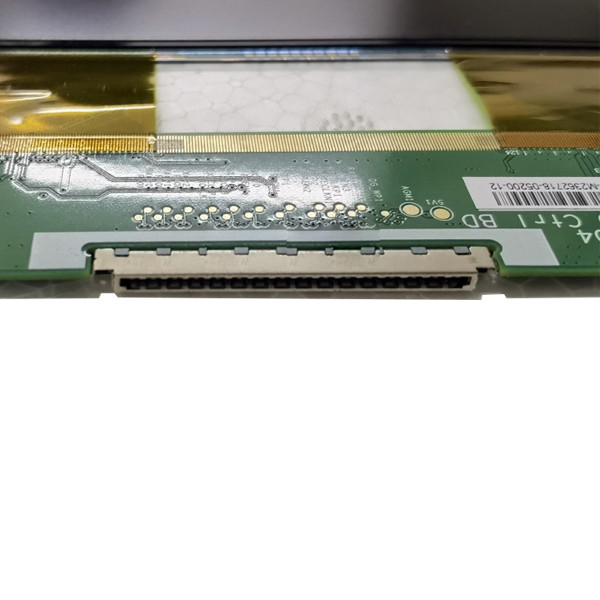

| Interface Type | LVDS (2 ch, 8-bit)30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
Shipping and Package :
Shippment:
Usually we will prepare and ship your goods within 1 working day.
Pls check if your item is in good condition upon receipt of it.
Delivery time:
----Via Express: Generally 7-10 working days.
----Via Air Mail: Generally 30-50working days.
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
FAQ :
Q: How long is the warranty of TM190MDS01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of TM190MDS01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order TM190MDS01 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for TM190MDS01 ?
A: Of course!sample order is welcome !
