AUO 32.0 Inch LCD Display Modules 1920×1080 P320HVN03.0
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | P320HVN03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P320HVN03.0 | Screen Size: | 32.0 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 [FHD] 69PPI | Active Area: | 698.4(H)×392.85(V) Mm |
| Outline Dim.: | 719.2(H)×413.7(V) ×28.6(D) Mm | Bezel Area: | 703.4(H)×397.9(V) Mm |
| Weight: | 4.91Kgs (Typ.) | Designed For: | Digital Signage / Outdoor High Brightness |
| High Light: | AUO lcd display modules,P320HVN03.0 lcd display modules,32.0 inch lcd display modules |
||
Product Description

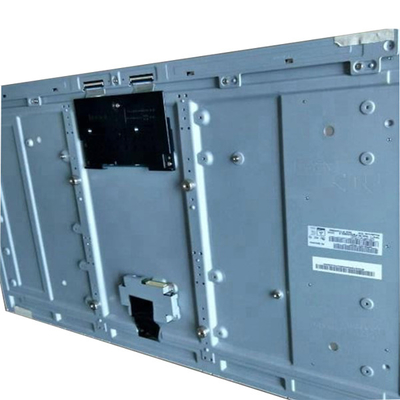

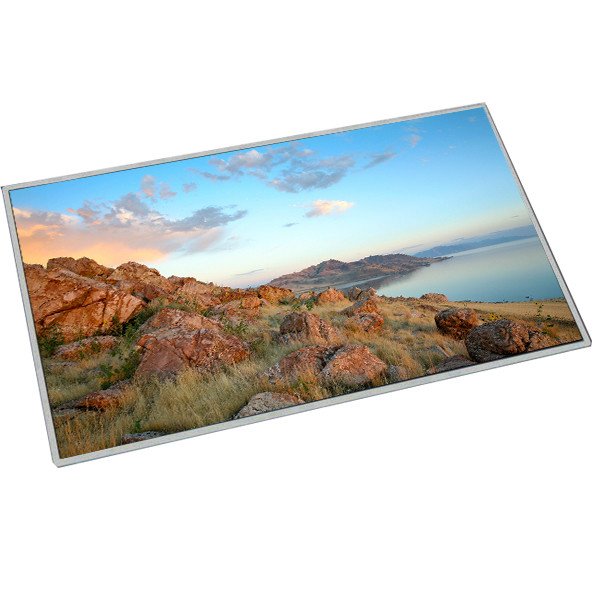

AUO 32.0 inch 1920×1080 P320HVN03.0 lcd display modules
Product details :
| AUO LCD SCREEN P320HVN03.0 | |
| Manufacturer | AUO |
| Model Name | P320HVN03.0 |
| Screen Size | 32.0 inch |
| Screen Type | a-Si TFT-LCD , LCM |
| Pixel Number | 1920(RGB)×1080 [FHD] 69PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 698.4(H)×392.85(V) mm |
| Outline(mm) | 719.2(H)×413.7(V) ×28.6(D) mm |
| Bezel Area(mm) | 703.4(H)×397.9(V) mm |
| Treatment | Antiglare (Haze 44%), Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | AMVA3, Normally Black, Transmissive |
| Color Depth | 16.7M/1.07B 99% sRGB |
| Backlight | WLED , 60K hours , With LED Driver |
| Mass | 4.91Kgs (Typ.) |
| Used for | Digital Signage / Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8/10-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
The display is just same as the photos. The warranty is 6 months.
Working hours: 9:00a.m.~18:30p.m., Monday to Saturday (China Time), except official holidays.
If you need more than 10 pcs, please contact us for a good discount.
1. Each lcd will be strictly tested with professional testing board to make sure it will work for your device.
2. If the item is defective, pls notify us within 3 days after receiving. We promise to offer you with the most satisfiying after-sale service.
Payment:
1) All major credit cards are acceptable through secure payment processor ESCROW.
2) If you can't immediately checkout after auction close, please wait for a few minutes and retry.
3) If you have any problem on payment, please contact us.
Shipping and Package :
About the transportation:
A. Normally all orders will be processed within 2 business days from the date of payment or the date of eCheck is cleared.We will inform you via your registered email after your order is sent out from our warehouse.
B. Please make sure the address on your payment is current.A phone Number is recommended for a more accurate delivery.We are not responsible for wrong or undeliverable address.
C. China post air mail delivery time depends on destination and other factors, it may takes up to 15-35 business days.
D. Express delivery time depends on destination and other factors; it may takes up to 3-15 business days.
Guarantee:
1)All items will be strictly tested and shipped with strong package.
2) We have warranty for every item.
3)We will do our best to solve any possible problem for you after sale. Please contact us.
FAQ :
Q: How long is the warranty of P320HVN03.0 ?
A: 90 days warranty .
Q: How can I trace my order of AUO P320HVN03.0 ?
A: we will give you tracking number then you can trace your order form website.
Q: How to make payment for P320HVN03.0 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of lcd panel P320HVN03.0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
