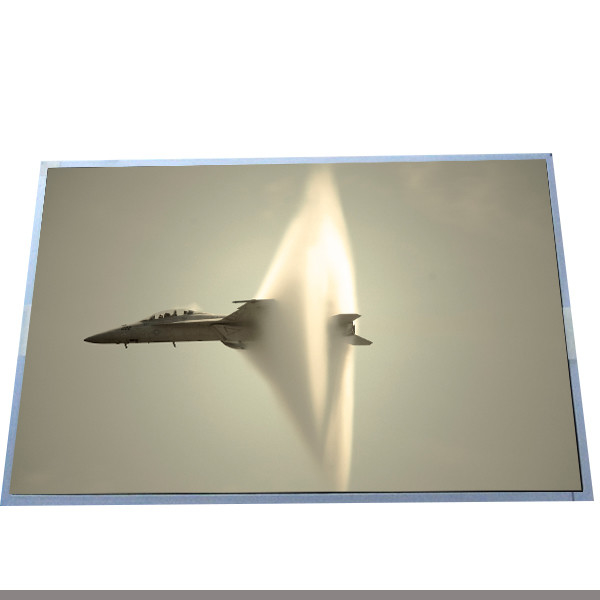

24.0 inch 1920×1080 resolution IPS TFT Lcd screen M240HW01 V8 Display Modules
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | M240HW01 V8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | M240HW01 V8 | Panel Size: | 24.0 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 [FHD] 91PPI | Active Area: | 531.36(H)×298.89(V) Mm |
| Outline Dim.: | 556(H)×323.2(V) ×14.9(D) Mm | Bezel Area: | 535.4(H)×303.0(V) Mm |
| Weight: | 2.20Kgs (Typ.) | Designed For: | Desktop Monitor / Gaming |
Product Description
24.0 inch 1920×1080 resolution IPS TFT Lcd screen M240HW01 V8 Display Modules
Product details :
| AUO LCD SCREEN M240HW01 V8 | |
| Panel Brand | AUO |
| Panel Model | M240HW01 V8 |
| Panel Size | 24.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 FHD 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 531.36(horizontal)×298.89(vertical) mm |
| Bezel Opening | 535.4(horizontal)×303.0(vertical) mm |
| Outline Size | 556 (horizontal) × 323.2 (vertical) × 14.9 (thickness) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/80/80 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3.5/1.5 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 70% NTSC |
| Lamp Type | WLED [14S4P] , 30K hours, no driver |
| Frequency | 120Hz |
| Panel Weight | 2.20Kgs (Typ.) |
| Signal Interface | 66 pins LVDS (4 ch, 8-bit) , terminal |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
Description:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
5.Exactly the same items and pictures.
6.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
7.Each item has been checked and in good condition before shipping.
8. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
Ransaction:
• if the buyer cannot find the same product, the buyer can send us the product and model, and we will provide it for you.
• 100% new meaning new product.95% new and 90% new meaning second-hand products,All products good working,tested before shipping.
• After installation, if not working, please contact us as soon as possible, and our engineers will help you solve the problem.
• at the time of delivery, please verify the correctness and completeness of the goods. If the goods are wrong or damaged, please refuse to sign and contact us.
Shipping and Package :
Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
Shipping:
• the default delivery is (Shipping Line Standard Delivery).
• if you need other delivery methods, please contact us, we can provide the following delivery methods :DHL, EMS, UPS, FEDEX.
Warranty :
1, We take 6 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP.
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
FAQ :
Q: How long will I receive my goods M240HW01 V8 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of M240HW01 V8 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of M240HW01 V8 ?
A: Of course!sample order is welcome !
