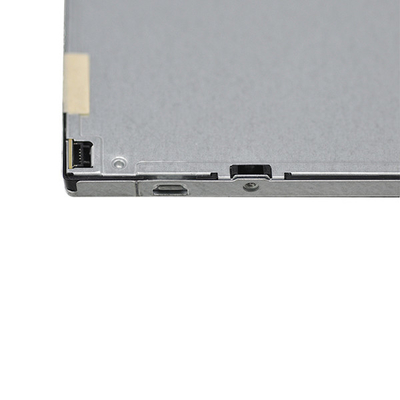

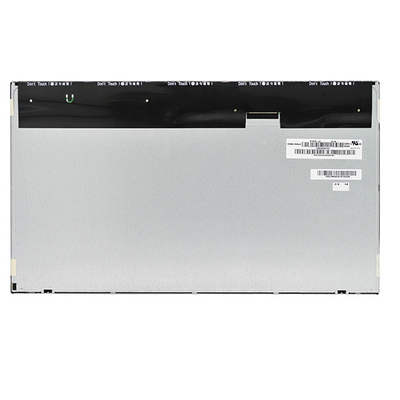

AUO 19.5 inch Panel M195RTN01.0 LVDS Interface 1600X900 TFT LCD Display Screen for Industrial Laptop
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | M195RTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | M195RTN01.0 | Diagonal Size: | 19.5 Inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×900 [HD+] 94PPI | Active Area: | 433.92(H)×236.34(V) Mm |
| Outline Dim.: | 452(H)×263(V) ×11(D) Mm | Bezel Area: | 437.2(H)×239.6(V) Mm |
| Weight: | 1.43Kgs (Typ.) | Application: | Desktop Monitor |
Product Description
AUO 19.5 inch Panel M195RTN01.0 LVDS Interface 1600X900 TFT LCD Display Screen for Industrial Laptop
Product details :
| AUO LCD SCREEN M195RTN01.0 | |
| Panel Brand | AUO |
| Panel Model | M195RTN01.0 |
| Panel Size | 19.5 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1600(RGB)×900 HD+ 94PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 433.92(horizontal)×236.34(vertical) mm |
| Bezel Opening | 437.2(horizontal)×239.6(vertical) mm |
| Outline Size | 452 (horizontal) × 263 (vertical) × 11 (thickness) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/80/80 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3.8/1.2 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 72% NTSC |
| Lamp Type | WLED [10S4P] , 30K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 1.43Kgs (Typ.) |
| Signal Interface | 30 pins LVDS (2 ch, 8-bit) , terminal |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating: 0 ~ 50 °C ; Storage: -20 ~ 60 °C |
We offer this project is very good quality the lowest price! Products directly from the manufacturer. The number of our pursuit. What we need is a positive feedback, thank you very much for your help, our shops. Thank you.
We only provide reasonable prices for our projects of various ranks. There is a saying in the eastern region, "ten dollars of oil and water cents." Depends on what you need to choose the most appropriate one.
Dear customers:
1. We assure you that all the products we sell are brand new and original products, we will test the products before shipping and keep them in normal condition, please buy with confidence.
2. If you need bulk order or wholesale distribution of goods, please consult our customer service staff to provide you with the greatest discount.
3. If you have any questions before placing an order, please feel free to contact us, we will reply you as soon as possible.
Payment:
1. Please make sure your payment account is available before purchasing the item.
2. If you have any problem with the payment of the goods, please contact us first, we will try our best to solve it for you.
3. If you have special requirements for product details, please leave a message in the order.
Shipping and Package :
Shipment:
1. We ship items by express line.
2. We also can ship via express way, such as EMS, DHL,FEDEX,some special line. if you need, pls contact us for details.
3. We can not be responsible for any wrong or undeliverable addresses. Pls check address after you put an order.
4. We are not responsible for any tax or customs caused in buyers' countries. Hope you can understand
All problems can be solved through communication.
Thanks you very much and have a wonderful day!
Please feel free to contact us if you have any question. Your questions will be answered within 24h.
FAQ :
Q: How long will I receive my goods of AUO M195RTN01.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for AUO M195RTN01.0 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the M195RTN01.0 I receive can't work ?
A: The M195RTN01.0 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can You declare my order of lcd panel AUO M195RTN01.0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
