G286HAN01.0 28.6 Inch Outdoor LCD Display Screen RGB 1920x540 Industrial Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G286HAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | G286HAN01.0 | Diagonal Size: | 28.6 Inch (1/2 Cut Of 32.0") |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×540 69PPI | Active Area(mm): | 698.4 × 196.425 (H×V) |
| Outline(mm): | 731.46 × 229.49 × 21.34 (H×V×D) | Bezel Area(mm): | 702.4 × 200.43 (H×V) |
| Mass: | 2.70Kgs (Typ.) | Used For: | Industrial / Outdoor High Brightness / Stretched Bar LCD |
| High Light: | G286HAN01.0 outdoor lcd display screen,28.6 inch outdoor lcd display screen,LVDS industrial lcd screen |
||
Product Description

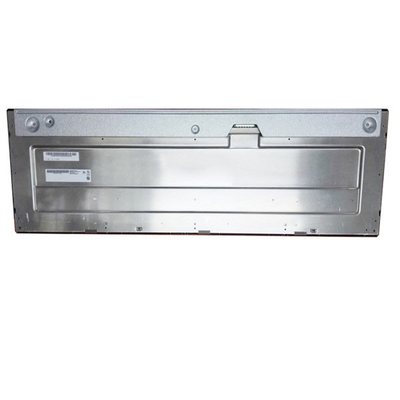

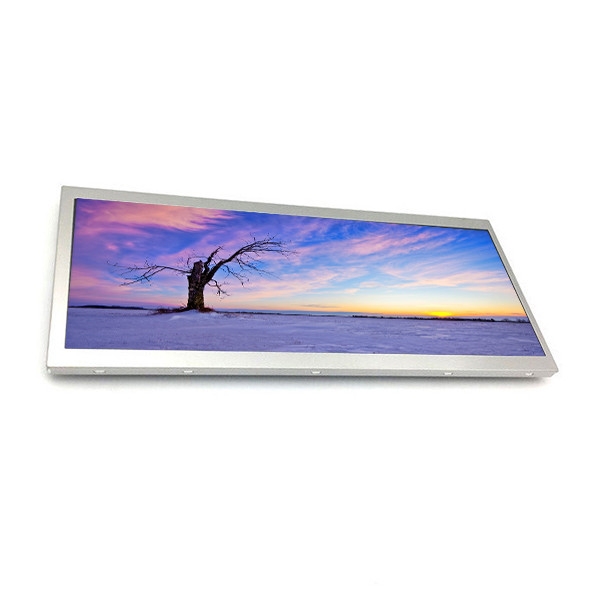

G286HAN01.0 Original 28.6 inch outdoor lcd display screen 1920(RGB)×540 industrial screen
Product details :
| AUO LCD SCREEN G286HAN01.0 | |
| Panel Brand | AUO |
| Panel Model | G286HAN01.0 |
| Panel Size | 28.6 inch (1/2 cut of 32.0") |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×540, 69PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 698.4(W)×196.425(H) mm |
| Bezel Opening | 702.4(W)×200.43(H) mm |
| Outline Size | 731.46(W)×229.49(H)×21.34(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 16/9 (Typ.)(Tr/Td) |
| Display Colors | 16.7M , 72% NTSC |
| Lamp Type | WLED , 50K hours, without driver |
| Frequency | 60Hz |
| Panel Weight | 2.70Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 51 pins , terminal |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating: 0 ~ 50 °C ; Storage: -20 ~ 60 °C |
Packing:
the parcel will be packed well with bubble bag + strong box.Do not worry.
Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the
Transaction before buying.
Shipping and Package :
Shipping time:
We try our best to ship out same day for payment cleared before 17.00 PM (Beijing Time),otherwise we will ship on next working day.Order placed on weekend or holiday will be shipped on Monday or next working day.when we shipped, you can see the tracking number in your order.
Return:
Only defective product will be offered exchange.
Defective products must be returned within 30 days from the date you placed your order.
It may take up to 7 business days to process your return after we receive your product.The buyer is responsible for all further shipping fees.
NOTE:
1. Please confirm the model number of your LCD screen when you order our screen.So as not to buy the wrong, can not be used normally.
2.Before you confirming the screen can not work perfectly, please do not use the adhesive to install our screen to your equipment,if the screen paste the glue, we can not accept you to return it and ask for the payment refunding.
3. The problem you may meet
a.broken screen→ make an unpacking video → contact us and send the video
b. un-working screen→ make a testing video → contact us and send the video
4. If everything is OK in our screen, please leave us five stars positive feedback, we will provide you a good feedback too.
5. If the screen has any problem, please contact us immediately, we will handle it for you soon, thanks for understanding.Looking forward to the long-term cooperation with you!Happy shopping!
FAQ :
Q: Can You declare my order of G286HAN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of G286HAN01.0 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of G286HAN01.0 ?
A: we will give you tracking number then you can trace your order from website.
