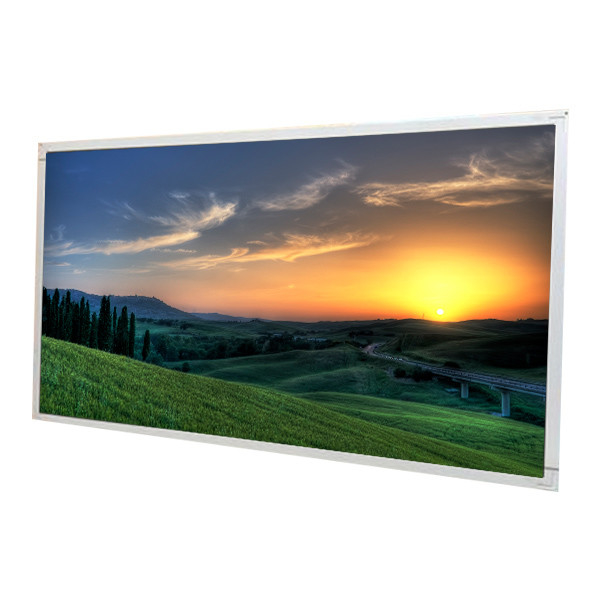

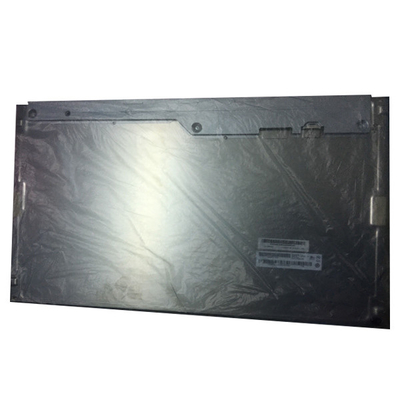

Original AUO 24.0 inch lcd 1920(RGB)×1080 TFT LCD display panel Industrial LCD Screen G240HVT01.0
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G240HVT01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | G240HVT01.0 | Diagonal Size: | 24.0" |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD, 91PPI | Display Area: | 531.36(W)×298.89(H) Mm |
| Outline Size: | 556(W)×323.2(H) ×21.26(D) Mm | Brightness: | 260 Cd/m² (Typ.) |
| Panel Weight: | 3.67/3.75Kgs (Typ./Max.) | Used For: | Industrial |
Product Description
Original AUO 24.0 inch lcd 1920(RGB)×1080 TFT LCD display panel Industrial LCD Screen G240HVT01.0
Product details :
| AUO LCD SCREEN G240HVT01.0 | |
| Panel Brand | AUO |
| Panel Model | G240HVT01.0 |
| Panel Size | 24.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 531.36(horizontal)×298.89(vertical) mm |
| Outline Size | 556 (horizontal) × 323.2 (vertical) × 21.26 (thickness) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 260 cd/m² (Typ.) |
| Contrast Ratio | 5000:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 16/9 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 72% NTSC |
| Lamp Type | WLED [10S7P] , 50K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 3.67/3.75Kgs (Typ./Max.) |
| Signal Interface | 30 pins LVDS (2 ch, 8-bit) , terminal |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
