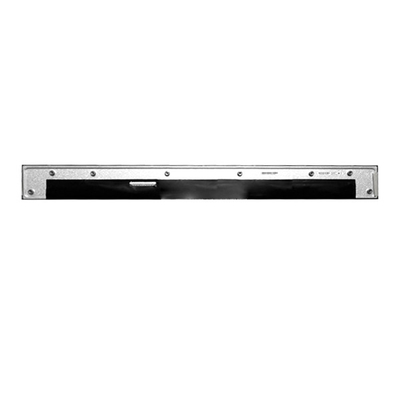

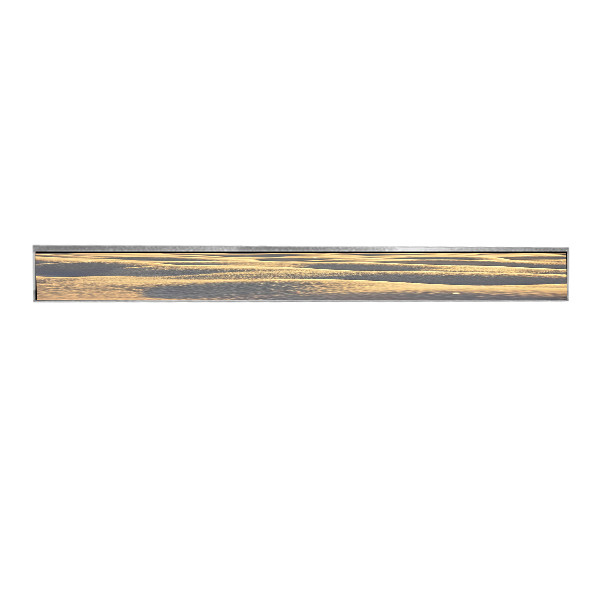

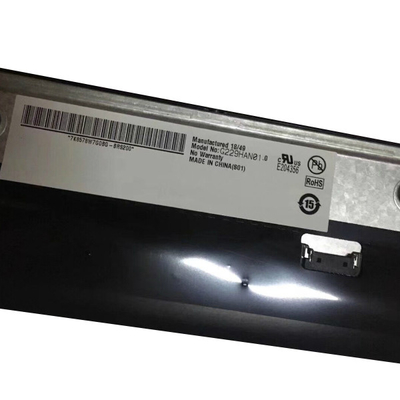

AUO 22.9 Inch Stretched Bar LCD Panel 500 Nits G229HAN01.0 RGB 1920X165 84PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G229HAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | G229HAN01.0 | Diagonal Size: | 22.9 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×165 84PPI | Active Area: | 578.88(H)×49.7475(V) Mm |
| Outline Dim.: | 587.08(H)×62.05(V) ×10.71(D) Mm | Bezel Area: | 580.88(H)×51.75(V) Mm |
| Weight: | 460g (Typ.) | Used For: | Industrial / Stretched Bar LCD |
| High Light: | G229HAN01.0 Stretched Bar LCD Panel,500 Nits Stretched Bar LCD Panel,AUO stretched bar lcd display |
||
Product Description
AUO New Original 22.9 Inch Stretched Bar Lcd Panel G229HAN01.0 With 1920(RGB)×165 500 Nits Stretched Bar Lcd Panel
Product details :
NOTE:Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.We will send the compatible one instead if the original one out of stock.
•1-->LCD model name in your hand now
•2-->Your LCD name
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
| AUO LCD SCREEN G229HAN01.0 | |
| Panel Brand | AUO |
| Panel Model | G229HAN01.0 |
| Panel Size | 22.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×165 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 578.88(horizontal)×49.7475(vertical) mm |
| Bezel Opening | 580.88(horizontal)×51.75(vertical) mm |
| Outline Size | 587.08 (horizontal) × 62.05 (vertical) × 10.71 (thickness) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 13/12 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 72% NTSC |
| Lamp Type | WLED , 70K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 460g (Typ.) |
| Signal Interface | 30 pins LVDS (1 ch, 8-bit) , terminal |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
