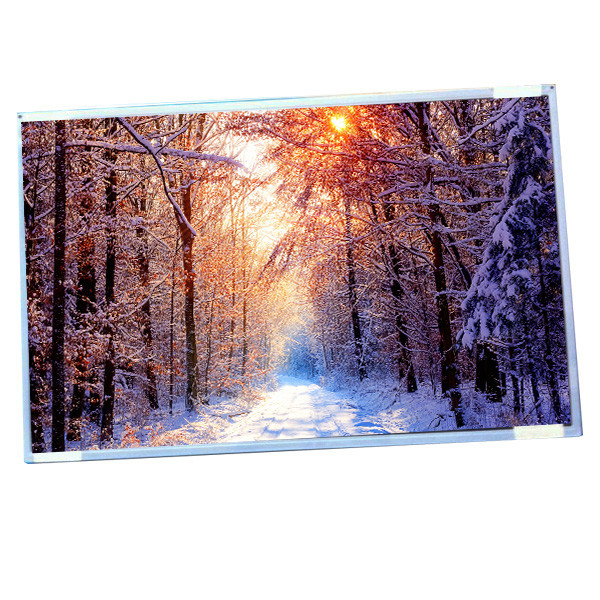

AUO display G220SW01 V0 22.0 inch IPS lcd wide screen with resolution 1680(RGB)×1050
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G220SW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | G220SW01 V0 | Diagonal Size: | 22.0 Inch |
|---|---|---|---|
| Pixel Format: | 1680(RGB)×1050 [WSXGA+] 90PPI | Active Area: | 473.76(H)×296.1(V) Mm |
| Outline Dim.: | 493.7(H)×320.1(V) Mm | Bezel Area: | 477.7(H)×300.1(V) Mm |
| Weight: | 2.95Kgs (Typ.) | Used For: | Industrial |
Product Description
AUO display G220SW01 V0 22.0 inch IPS lcd wide screen with resolution 1680(RGB)×1050
Product details :
| AUO LCD SCREEN G220SW01 V0 | |
| Panel Brand | AUO |
| Panel Model | G220SW01 V0 |
| Panel Size | 22.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×1050, WSXGA+, 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 473.76(W)×296.1(H) mm |
| Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline Size | 493.7(W)×320.1(H) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ. |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 15/5 (Typ.)(Tr/Td); 8 (Typ)(G to G) ms |
| Display Colors | 16.7M , 72% NTSC |
| Lamp Type | 6 pcs CCFL , 50K hours, without driver |
| Frequency | 60Hz |
| Panel Weight | 2.95Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins , termina |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
