AUO 15.0 inch Panel G150XAN01.1 1024(RGB)×768 TFT LCD High Brightness Full View 500 cd/m for Industrial Digital
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XAN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 868 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G150XAN01.1 | Panel Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Outline Size: | 326.5(W)×253.5(H) ×9(D) Mm | Bezel Opening: | 309.9(W)×236.3(H) Mm |
| Weight: | 920g (Max.) | Application: | Industrial |
Product Description

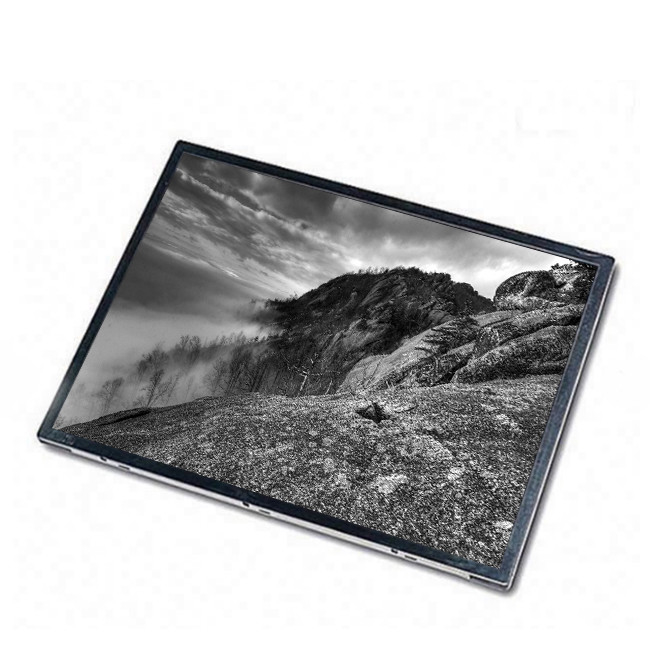

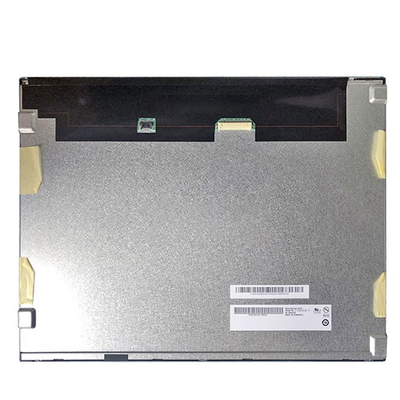

AUO 15.0 inch Panel G150XAN01.1 1024(RGB)×768 TFT LCD High Brightness Full View 500 cd/m for Industrial Digital
Product details :
| AUO LCD SCREEN G150XAN01.1 | |
| Panel Brand | AUO |
| Panel Model | G150XAN01.1 |
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 309.9(W)×236.3(H) mm |
| Outline Size | 326.5(W)×253.5(H)×9(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.2M , 60% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 920g (Max.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -20 ~ 70 °C ; Storage: -20 ~ 70 °C |
