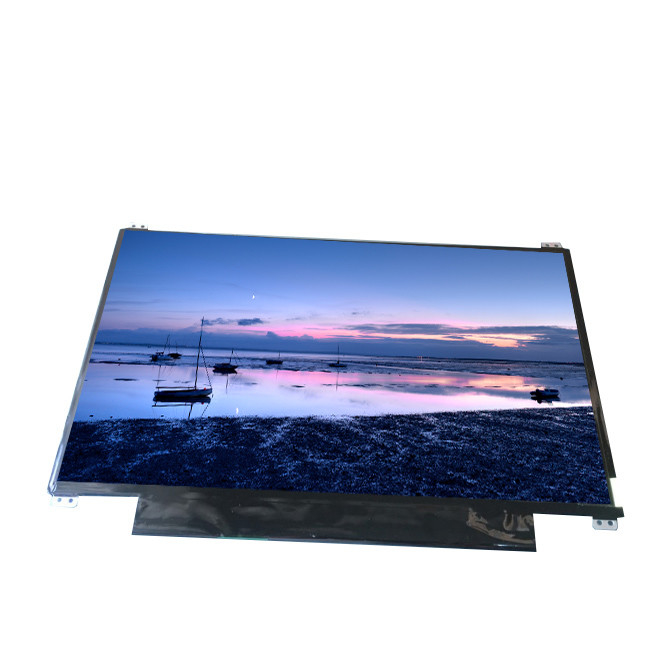

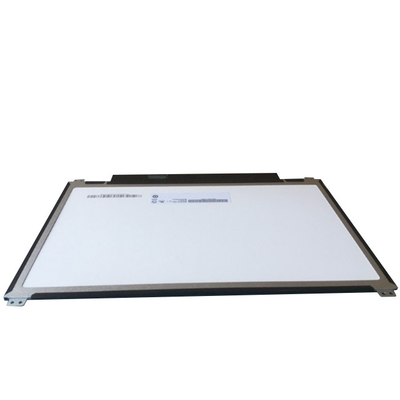

13.3 inch 1366*768 resolution IPS TFT Lcd screen G133XTN01.0 Display Modules
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G133XTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 868 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G133XTN01.0 | Panel Size: | 13.3 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 [WXGA] 118PPI | Active Area: | 293.42(H)×164.97(V) Mm |
| Outline Dim.: | 306.3(H)×197.2(V) Mm | Support Color: | 16.7M 45% NTSC |
| Weight: | 255g (Max.) | Used For: | Industrial |
Product Description
13.3 inch 1366*768 resolution IPS TFT Lcd screen G133XTN01.0 Display Modules
Product details :
| AUO LCD SCREEN G133XTN01.0 | |
| Panel Brand | AUO |
| Panel Model | G133XTN01.0 |
| Panel Size | 13.3 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 293.42(horizontal)×164.97(vertical) mm |
| Outline Size | 306.3(horizontal)×197.2(vertical) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| Viewing Angle | 70/70/50/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 45% NTSC |
| Lamp Type | WLED , 20K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 255g (Max.) |
| Signal Interface | 40 pins LVDS (1 ch, 8-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -20 ~ 60 °C ; Storage temperature: -30 ~ 70 °C |
Buyer's notice:
Please provide the exact digital model and picture of the original display screen. If the buyer returns the goods due to wrong purchase, the freight shall be borne by the buyer. Remember, thank you
The LCD screen has three properties
1. Close: perfect, defect free and smooth surface
2. Matte: perfect, no defect, no gloss on the surface
Our strengths:
1. The LCD screen you purchased is 100% genuine.
2. Our goods are in sufficient stock and will be delivered within 24 hours.
3. The customer shall install independently and provide installation instructions.
4. Our packaging is professionally customized and very safe! Each package has a fragile label
5. Product level provides class A (perfect) and class A (imperfect) to meet various customer needs
6. We provide professional after-sales service, 24-hour customer service and 90 Day Warranty (calculated from the arrival of the goods at the destination)
Shipping and Package :
Shipping:
All items will be shipped within 72 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
Return:
1.Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
2.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
FAQ:
Q: How long is the warranty of G133XTN01.0 ?
A: 90days warranty .
Q: How can I trace my order of AUO G133XTN01.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods G133XTN01.0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods AUO G133XTN01.0 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Because the screen is fragile, please must inspect the goods first, in the signing, if there is damage, you need to associate the responsible person, please be sure to check the goods in the signature, thank you!!!
