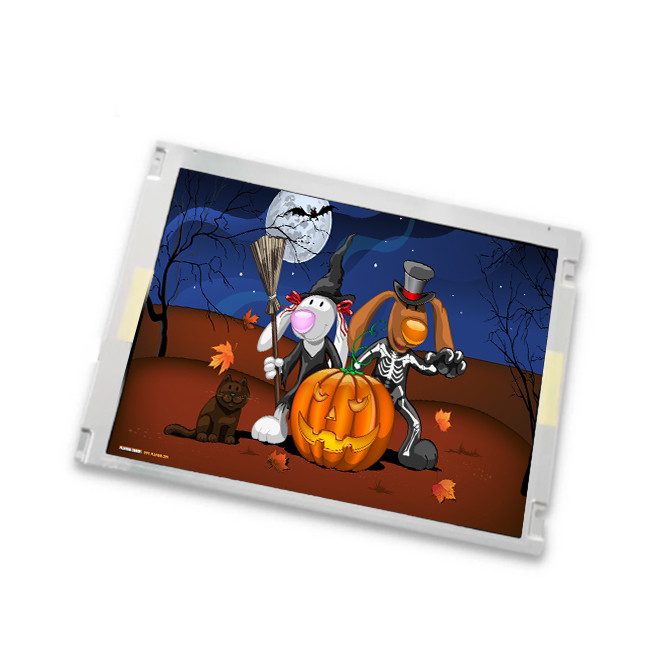

10.4 Inch 800×600 G104SN02 V1 display panel TFT lcd Screen module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G104SN02 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 868 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G104SN02 V1 | Panel Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 96PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Outline Size: | 243(W)×184(H) ×11(D) Mm | Bezel Opening: | 214.8(W)×162.7(H) Mm |
| Panel Weight: | 495g (Max.) | Designed For: | Industrial |
Product Description
10.4 Inch 800×600 G104SN02 V1 display panel TFT lcd Screen module
Product details :
| AUO LCD SCREEN G104SN02 V1 | |
| Panel Brand | AUO |
| Panel Model | G104SN02 V1 |
| Panel Size | 10.4 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600, SVGA, 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 214.8(W)×162.7(H) mm |
| Outline Size | 243(W)×184(H)×11(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 10/20 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.2M , 45% NTSC |
| Lamp Type | 2 pcs CCFL , 50K hours, without driver |
| Frequency | 60Hz |
| Panel Weight | 495g (Max.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -30 ~ 85 °C ; Storage: -30 ~ 85 ° |
Berfore you order :
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model number and photos of your original screen;
Usually the led panel we send will be a compatible model number, it might not exactly the same as model of your original screen .But we can make sure it will fit for the model 100%.
All the item will be tested before shipment, adhesive tape is not included. If you need one, please leave a message during the order;
For all the problems, please do not leave negative feedback or open dispute before contacting us, Please send us message via AliExpress and we will solve the problem for you immediately.
Your satisfaction is our goal!
Payment:
1: We accept Alipay, PayPal, Western Union, TT here
2: All major credit cards are accepted through secure payment proces- sor ESCROW
3: Please make sure you read the entire description and agree to the
transaction before buying
Shipping and Package :
Shipping Detail:
1: Please confirm your ADDRESS carefully once you make the order.We will send the products to you at once after the payment is received.
2: Items are shipped from China using airmail;reach most of the coun- tries within 15-30 business days.
3: Please contact us if you don't receive the products in 45 days. And please give us 3 working days for checking the undelivered package andthe reason. If it is our problem,we will refund the money to you.
Return:
1: A full refund will be given if items are returned in their original condition.
2: Merchandise which is damaged or missing components is not re- fundable.
Other Policies:
1: We are not responsible for any custom duty or import tax.
2: All emails will be answered within 24 hours. If you don' t receive our reply,please kindly re-sent your email and we will reply to you .
FAQ:
Q: How can I trace my order of G104SN02 V1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of G104SN02 V1 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of G104SN02 V1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of G104SN02 V1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
