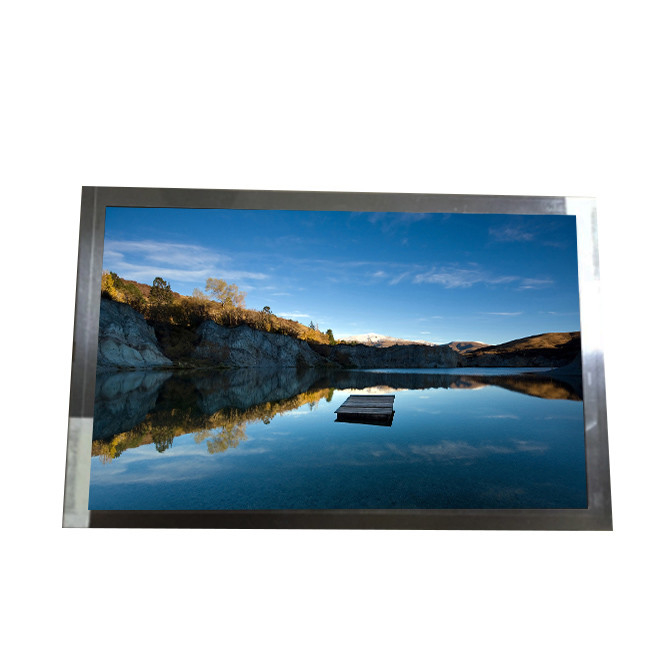

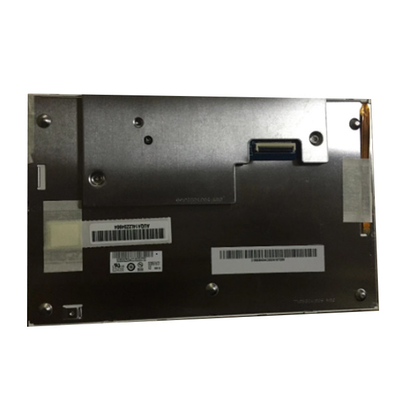

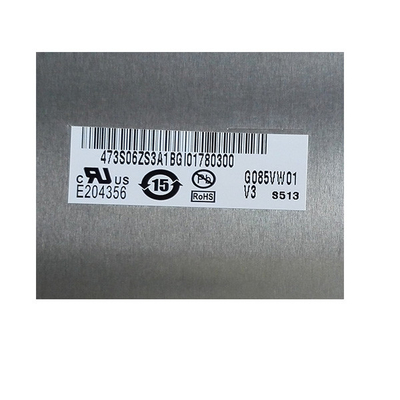

G085VW01 V3 Brand New Original 8.5 inch 800(RGB)×480 LCD Display Panel for Industrial Equipment for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G085VW01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 868 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G085VW01 V3 | Screen Size: | 8.5" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA, 109PPI | Display Area: | 184.8(W)×110.88(H) Mm |
| Outline Size: | 210(W)×134(H) ×10.5(D) Mm | Bezel Opening: | 189.8(W)×115.88(H) Mm |
| Panel Weight: | 320g (Typ.) | Designed For: | Industrial |
Product Description
G085VW01 V3 Brand New Original 8.5 inch 800(RGB)×480 LCD Display Panel for Industrial Equipment for AUO
Product details :
NOTE: 1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
| AUO LCD SCREEN G085VW01 V3 | |
| Manufacturer | AUO |
| Model Name | G085VW01 V3 |
| Diagonal Size | 8.5 inches |
| Type | a-Si TFT-LCD, LCM |
| Pixel Number | 800(RGB)*480 [WVGA] 109PPI |
| Configuration | RGB Vertical Stripe |
| Display size | 184.8 * 110.88 mm (H*V) |
| physical dimension | 210 * 134 * 10.5 mm (H*V*D) |
| Open area | 189.8 * 115.88 mm (H*V) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 200 (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (transmission) |
| Response Time | 20/10 (Typ.)(Tr/Td) ms |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Operating Mode | TN, normally white display, transmissive |
| Support Color | 262K, 50% NTSC |
| Light Source | 6S4P WLED, 30K hours, no driver |
| Frame Rate | 60Hz |
| weight | 320g |
| Interface Type | CMOS (1 ch, 6-bit), connector, 40 pins |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 70 °C Working temperature: -20 ~ 70 °C |
Why we were directly selected:
1. 6-month product warranty (excluding man-made damage)
All the goods for sale are in stock, and we can deliver the goods to you within 2 working days.
2. We have many different kinds of goods
What's more, you will get the lowest price with high quality.
Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
Shipping and Package :
Shipment:
· Please note: business/working days(NOT including the weekend or the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
· For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
Return:
· Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
· Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
FAQ:
Q: Can You declare my order of G085VW01 V3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of G085VW01 V3 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of G085VW01 V3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
